执行标准：欧盟EN12209:2016，20万次开启标准
EN1634-1:2012，4小时防火标准
中国GB12955-2008，90分钟3C防火标准
舌头配置：SUS304不锈钢精铸斜舌
面板配置：高级耐指纹盖板，SUS304面板
拨轮配置：高精度钢制，分体式
表面处理：不锈钢拉丝，沙金PVD等
适用门型：木质门、钢质门等
适用区域：储藏室门，办公室门，分区门等
Compliance: EN12209:2016, 200,000 life cycle
EN1634-1:2012, 4 hours fire rated
Latch bolt are made by casting stainless steel 304, 4mm
Forend is anti-figerprint stainless steel 304
Follower is casting stainless steel 304
Finish: SS, Satin PVD, Polished PVD, Polished
Suitable for woodend and steel door, flat door, rebated door
Application: storeroom door, office door, partition door
把手配置：把手外部固定、内侧活动.款型可选
锁体配置：钢木门螺丝及标准100MM长8*8方杆
锁芯为单开或者双开，长度依据实际门厚确定
适用标准门厚45-50MM,选配门厚51 -70MM

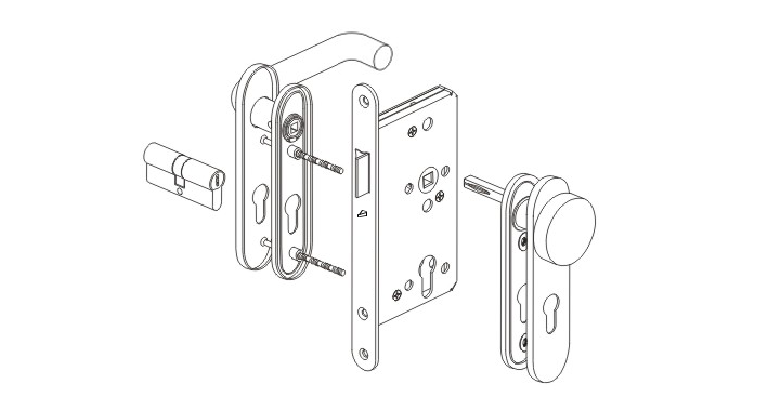

Handle: Two activity handle for both side, 4 sets of through bolt .
Lock: screws and 8* 8*100mm spindle
Cylinder: key/key or half cylinder
Suitable for door thickness 45~ 50mm.51~70mm thickness is optional.
储藏室门：门内无锁定，门外钥匙开启
办公室门：与电锁扣配合使用，门内压把手开门门外读卡进门
钥匙可纳入总钥匙管理系统，实现统一管理
Storeroom door: inside unlocked , open from outside by key
Office Door: match with the electric lock.
Press the handle to open from inside. Read the card from outside.
Master key is available
