浴室锁78-55WC/78-60WC/78-65WC
规格型号:
78-55WC/78-60WC/78-65WC
产品材质:
不锈钢304
表面处理:
不锈钢拉丝 SS 不锈钢亮光BSS 沙金PVD 亮光PVD
产品认证:
咨询该产品
所属品牌:
78-55WC/78-60WC/78-65WC浴室锁体

执行标准:欧盟BS EN12209:2016,20万次开启标准
                    BS EN1634-1:2012,4小时防火标准
舌头配置:SUS304精铸斜舌方舌
面板配置:高级耐指纹盖板,SUS304面板
拨轮配置:高精度钢制,一体式
表面处理:不锈钢拉丝、沙金PVD、亮金PVD、镜光
适用门型:木质门、钢质门、平口门等
方向开启:斜舌可换向,不分左右方向
适用区域:公共卫生间门


Compliance:BS EN12209:2016,200,000 times life cycle
                 BS EN1634-1:2012,4 hours fire rated
Dead bolt and latch bolt are made by casting stainless steel 304
Forend is anti-figerprint stainless steel 304
Follower is casting stainless steel 304
Finish:SS,satin PVD, polished PVD, polished
Suitable for wooden and steel door , flat door, etc
Non handed
Application:public restroom doors

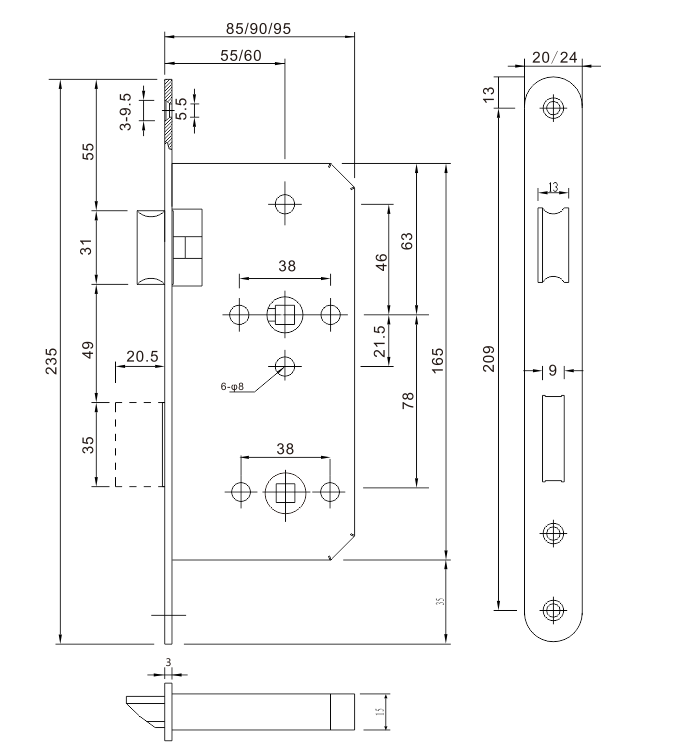

尺寸图
配置说明

把手配置:双面活动把手,4颗对穿螺丝

锁体配置:钢木螺丝及标准100MM长8*8方杆

锁芯部分为专用拧手

适用标准门厚45-50MM,选配门厚51-70MM


Handle: Two activity handle for both side, 4 sets of through bolt .

Lock: screws and 8* 8* 100mm spindle

Cylinder: key/key or half cylinder

Suitable for door thickness 45~ 50mm.51~70mm thickness is optional.


功能说明

卫生间门:门内拧手反锁,门外红蓝指示,双面把手活动


Indicator to show the occupy. Emergency open by coin.

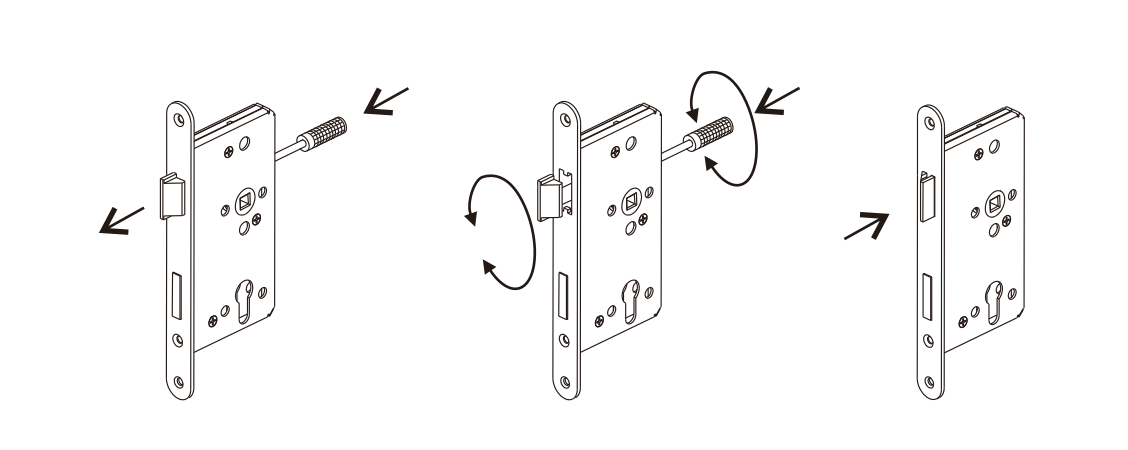

换舌示意图
