舌头配置：SUS304精铸斜舌、方舌
面板配置：高级耐指纹盖板，SUS304面板
拨轮配置：高精度钢制，一体式/分体式
表面处理：不锈钢拉丝，沙金PVD，亮金PVD,镜光
适用门型：木质门、钢质门、平口门、企口门等

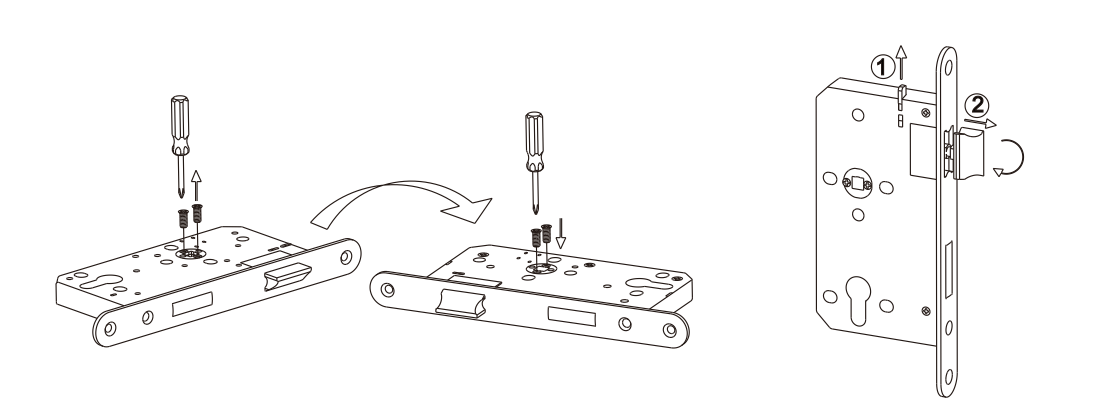

方向开启：斜舌可换向，不分左右方向
适用区域：防火门、防烟门等
Compliance: European Union en12209:2016, 200000 times open standard
EN1634-1:2012, 4 hours fire protection standard
EN179:2008, escape standard
EN1125:2008 escape standard for mechanical opening
China GB 12955-2008, 90 minutes 3C fire protection standard
Dead bolt and latch bolt are made by casting stainless steel 304
Forend is anti-figerprint stainless steel 304
Follower is casting stainless steel 304
Finish: SS, satin PVD, polished PVD, polished
Suitable for wooden and steel door,flat door, rebated door
Non handed
Application: fire door, smoke door
锁体配置:钢木螺丝及标准100MM长8*8方杆
锁芯为单开或者双开,长度依据实际门厚确定
适用标准门厚45-50MM，选配门厚51-70MM
Handle: The outside is equipped with European standard handle, and
the inside is equipped with escape door lock
Lock: screws and 8* 8*100mm spindle
Cylinder: key/key or half cylinder
Suitable for door thickness 45~50mm.51 -70mm thickness is optional
钥匙可纳入总钥匙管理系统,实现统一管理
Exit door : rotate the handle to open the door from inside, by
key from outside
Master key is available
