面板配置:高级耐指纹盖板,SUS304面板
拨轮配置:高精度钢制，一体式/分体式
表面处理:不锈钢拉丝，沙金PVD，亮金PVD,镜光
适用门型:木质门、钢质门、平口门、企口门等

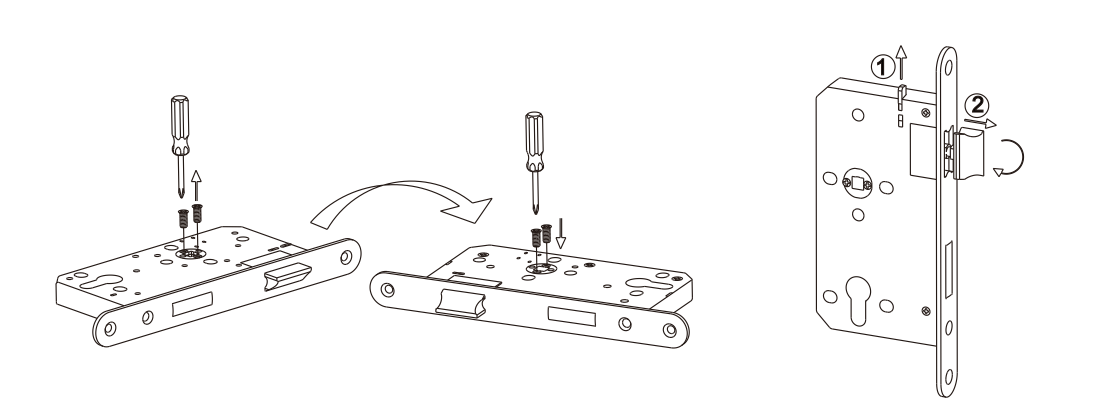

方向开启:斜舌可换向，不分左右方向
适用区域:入户门、防火门、防烟门等
Compliance:EN12209:2016+EN179;200,000 life cycle
EN1634-1:2012.4 hours fire rated
Dead bolt and latch bolt are made by casting stainless steel 304
Forend is anti-figerprint stainless steel 304
Follower is casting stainless steel 304
Finish: SS, satin PVD, polished PVD, polished
Suitable for wooden and steel door , flat door, rebated door
Non handed
Application: Entrance door fire door, smoke door
锁体配置:钢木螺丝及标准100MM长8*8方杆
锁芯为单开或者双开,长度依据实际门厚确定
适用标准门厚45-50MM，选配门厚51-70MM
Handle: Two activity handle for both side, 4 sets of through bolt .
Lock: screws and 8*8*100mm spindle
Cylinder: key/key or half cylinder
Suitable for door thickness 45~50mm.51~70mm thickness is optional.
逃生门:门内压把手开门，门外钥匙开门
钥匙可纳入总钥匙管理系统，实现统一管理
Exit door:rotate the handle to open the door from inside, by key from outside
Master key is available
