执行标准：欧盟EN12209:2016，20万次开启标准
EN1634-1:2012，4小时防火标准
中国GB12955-2008，90分钟3C防火标准
舌头配置：SUS304精铸斜舌
面板配置：高级耐指纹盖板, SUS304面板
拨轮配置：高精度钢制，一体式
表面处理：不锈钢拉丝，沙金PVD
适用门型：木质门、钢质门、平口门、企口门等

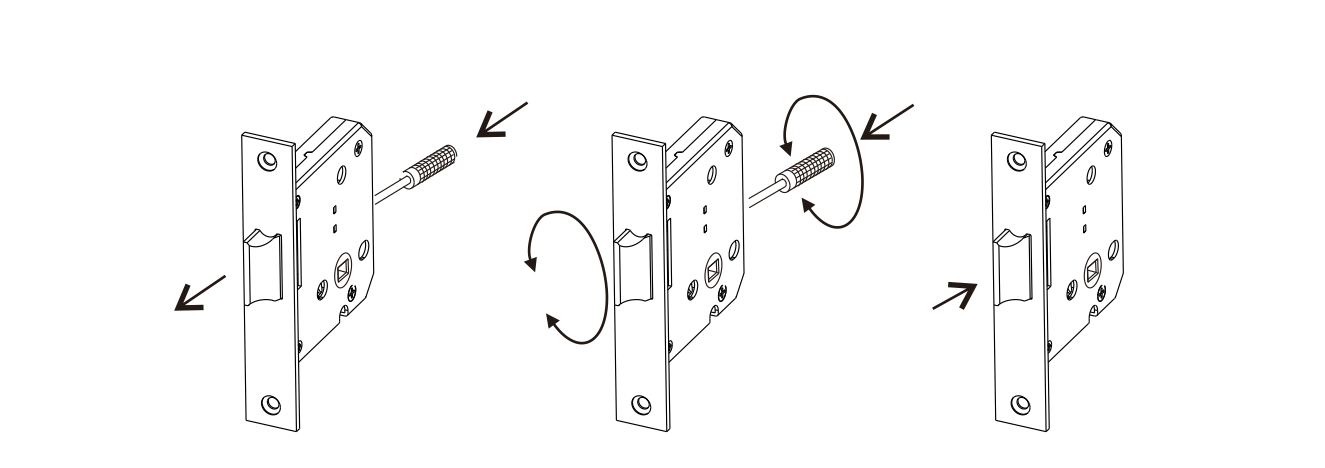

方向开启：斜舌可换向，不分左右方向
适用区域：通道门，隔断门等
Compliance: EN12209:2016, 200,000 life cycle
EN1634-1:2012, 4 hours fire rated
Dead bolt and latch bolt are made by casting stainless steel 304
Forend is anti-figerprint stainless steel 304
Follower is casting stainless steel 304
Finish: SS, satin PVD, polished PVD, polished
Suitable for wooden and steel door , flat door, rebated door
Non handed
把手配置：双面活动把手，2颗对穿螺丝
锁体配置：钢木门螺丝及标准100MM长8*8方杆
锁芯为单开或者双开，长度依据实际门厚确定
适用标准门厚45-50MM,选配门厚51-70MM
Handle: Two activity handle for both side, 4 sets of through bolt .
Lock: screws and 8*8* 100mm spindle
Cylinder: key/key or half cylinder
Suitable for door thickness 45~ 50mm.51~70mm thickness is optional.
通道门：门内门外均压把手开门，无锁定
Passage door: unlocked by both sides
