功能说明
功能说明:
1.门内1：工作时压把手语音报警，延时1-15秒后报警解除，推把开门
门内2: 采用读卡器授权的方式，读卡授权解除报警功能，推把开门
门内3:采用主体钥匙复位功能，解除报警，推把开门
门内4:产生的报警信号通过门禁控制器传达到控制中心
门外1:配置电控把手锁，需读卡授权释放把手(断电开) 开门，压把手开门
门外2:配置机械把手锁，需钥匙解锁把手，压把手开门
2.配置门禁控制器主箱进行联网工作
3.以上功能可适用单门门锁和双门门锁;
4.可选择单机数显型:ADE
5.认证:ANSIA156.13-1级50万次
ANSIA156.25-1级50万次
UL10C 3小时防火
6.可选ANSI/BHMAA156.29-1级50万次认证
Function:
1.Interior 1: touch bar more than 2 seconds, the alert is triggered,only after
1-15 seconds(by settings), alarm stop and door can be open.
Interior 2: With authority card, without any delay and no alarm.
door open.
Interior 3: With key, without any delay and no alarm, door open.Interior 4: the alert is triggered, the signal is sent to center
control system.
Exterior 1: with electrified trim, authority card to open the door
Exterior 2: with mechanism trim, authority key to open the door

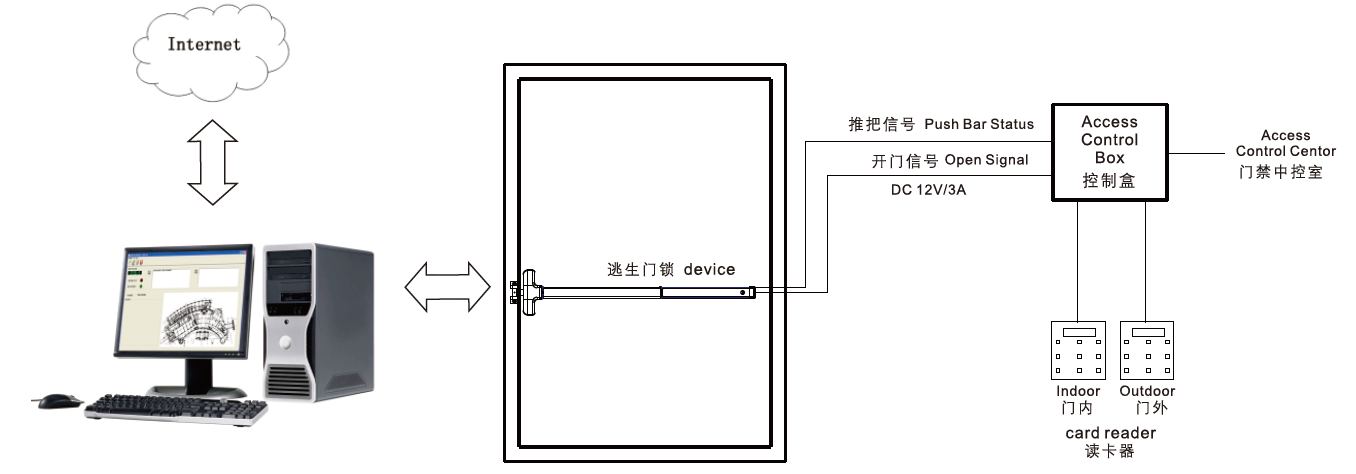

2.Access control controller to connect internet.
3. Apply to single and double door.
4.Standalone modelADEis available.
5.Compliance to:ANSI/BHMAA156.13,A156.25,UL10C
6. Certificate ANSI/BHMAA156.29,grade 1,cycle test 500,000 times
