美标逃生门锁F103
规格型号:
F103
产品材质:
不锈钢304
表面处理:
不锈钢拉丝 SS
产品认证:
咨询该产品
所属品牌:
F103美标逃生门锁

1.通过ANSI/BHMA A156.3-2级,25万次寿命测试

2.通过UL10C-1.5小时防火认证

3.通过CE认证,BS EN1125机械性能20万次认证

4.通过BS EN1634-1 2小时防火认证

5.通过GB30051-2013-级检测,2小时防火认证

6.锁舌为不锈钢304精铸件,耐磨损
7.锁头盖为不锈钢或者45号钢精铸件,强度高

8.锁身选用1.2mm厚的不锈钢304或者优质钢,强度余量大

9.盐雾测试240小时,防锈能力强

10.标准配置美标可适用1000mm门宽,欧标可适用833mm门宽

11.定做最大门宽,美标可适用1400mm门宽,欧标可适用1166mm门宽

12.美标及欧标适用的最小门宽为520mm(需订做)


1.Certificate:ANSI/BHMA A156.3 grade 2,cycle test 250,000 times
2.Certificate:UL10C for 1.5 hours fire rated
3.CE Certificate:BS EN1125 mechanical performance,cycle test 200,000 times
4.Certificate:BS EN1634-1, 2 hours fire rated
5.Certificate:GB30051-2013 Grade 1 for 2 hours fire rated
6.Latch is stainless steel 304
7.Cover is stainless steel 304 or steel
8.Case is stainless steel or steel,1.2mm thickness
9.Salt spray test for 240 hours
10.Standard configuration :  1000mm door width for ANSI/BHMA  A156.3, 833mm door width for BS EN1125
11.Max.1400mm door width for ANSI/BHMA  A156.3,Max.1166mm for BS EN1125
12.Min.520mm door width is optional

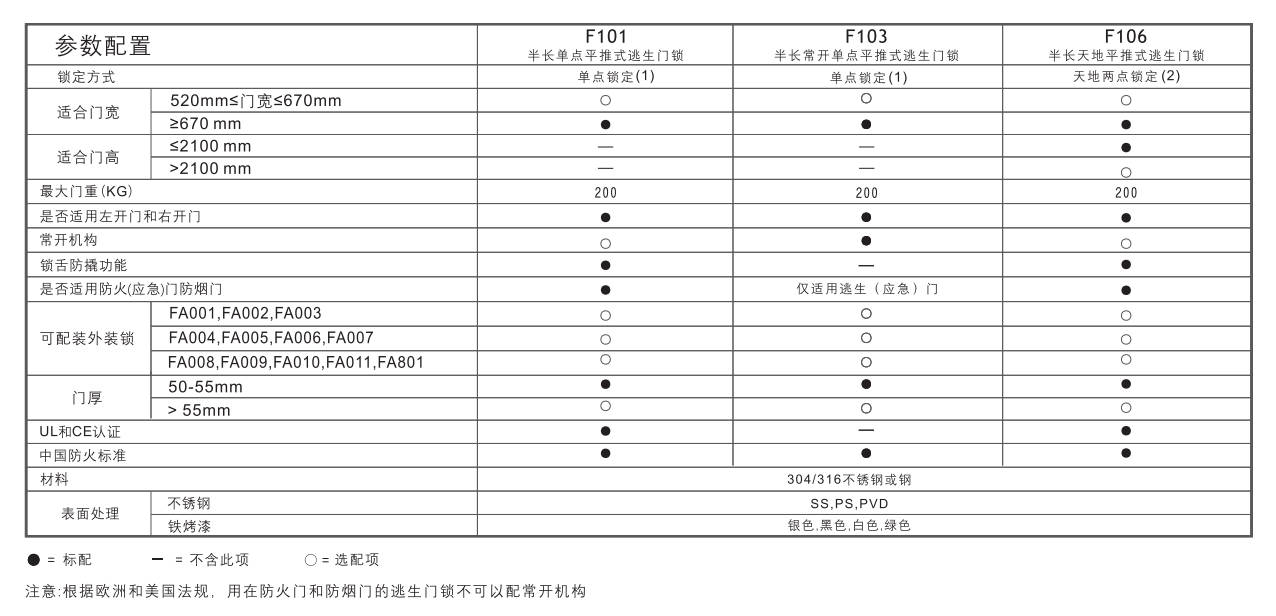

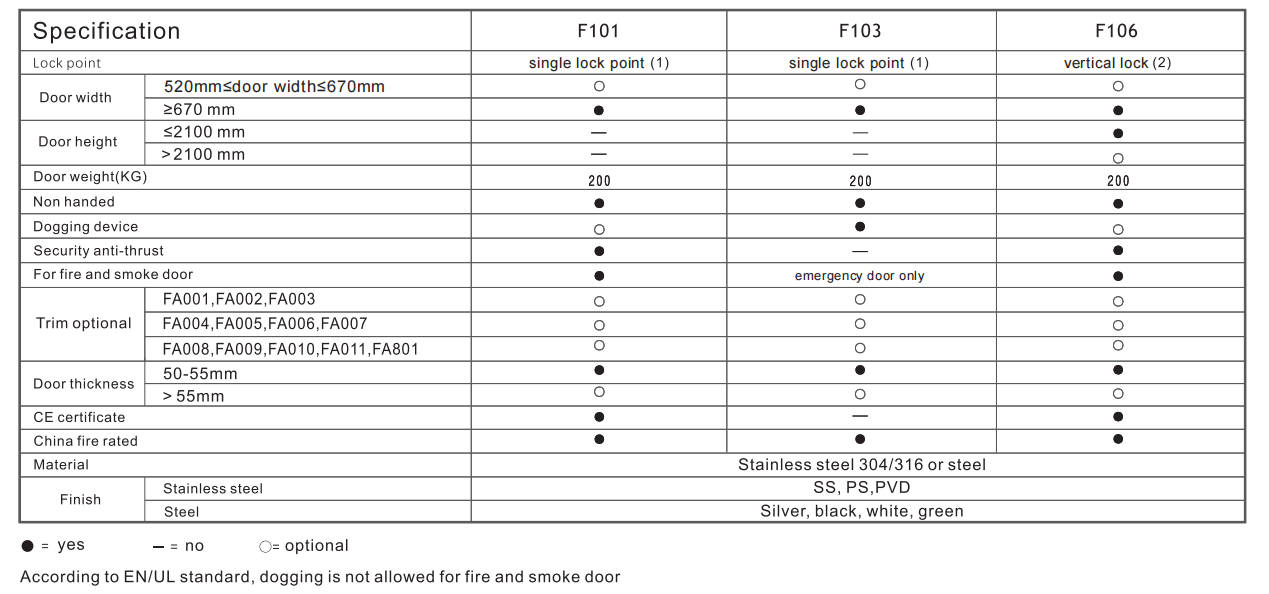

参数配置

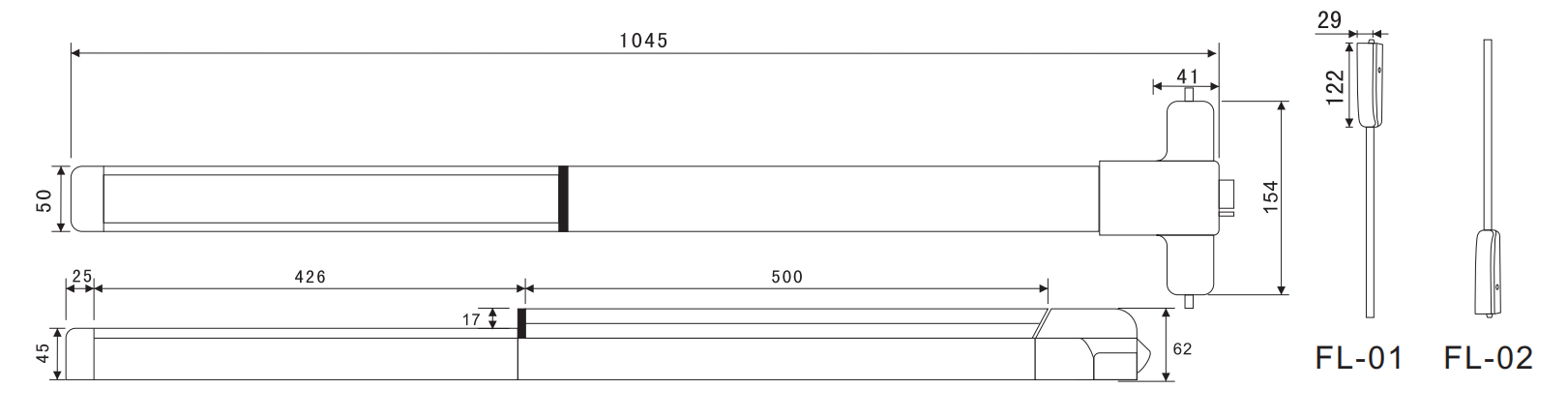

尺寸图
