美标逃生门锁F906
规格型号:
F906
产品材质:
不锈钢304
表面处理:
不锈钢拉丝 SS
咨询该产品
所属品牌:
美标逃生门锁F906

1.UL305,ANSI GRADE1级认证,50万次寿命

2.UL10C防火认证

3.CE认证,EN1125机械性能20万次认证,EN1634防火认证

4.GB30051-2013一级检测,90分钟防火

5.锁舌为不锈钢304精铸件,耐磨损

6.锁头盖为不锈钢,强度高

7.锁身选用1.2mm厚的不锈钢304或者优质钢,强度余量大

8.盐雾测试240小时,防锈能力强

9.标准配置美标可适用750mm门宽,欧标可适用1000mm门宽

10.定做最大门宽,美标可适用1400mm门宽,欧标可适用1066mm门宽

11.美标及欧标适用的最小门宽为500mm(需订做)

12.适用型材门


1.Compliance : UL305 ,ANSI/BHMAA156.3 grade 1 , 500,000 times cycle test

2.Compliance: UL 10C fire rated

3.Compliance: EN1125,200,000 times cycle test; EN 1634 fire rated

4.GB30051-2013 Grade 1 fire-rated

5.Latch is stainless steel 304

6.Cover is stainless steel 304 or steel

7.Case is stainless steel or steel, 1.2mm thickness

8.Salt spray test, 240 hours

9.For 750mm to 1000mm door width

10.Max.1400mm door width for ANSI/BHMAA156.3,Max.1066mm for EN1125

11.Min.500mm door width is optional

12. Apply to narrow stile door

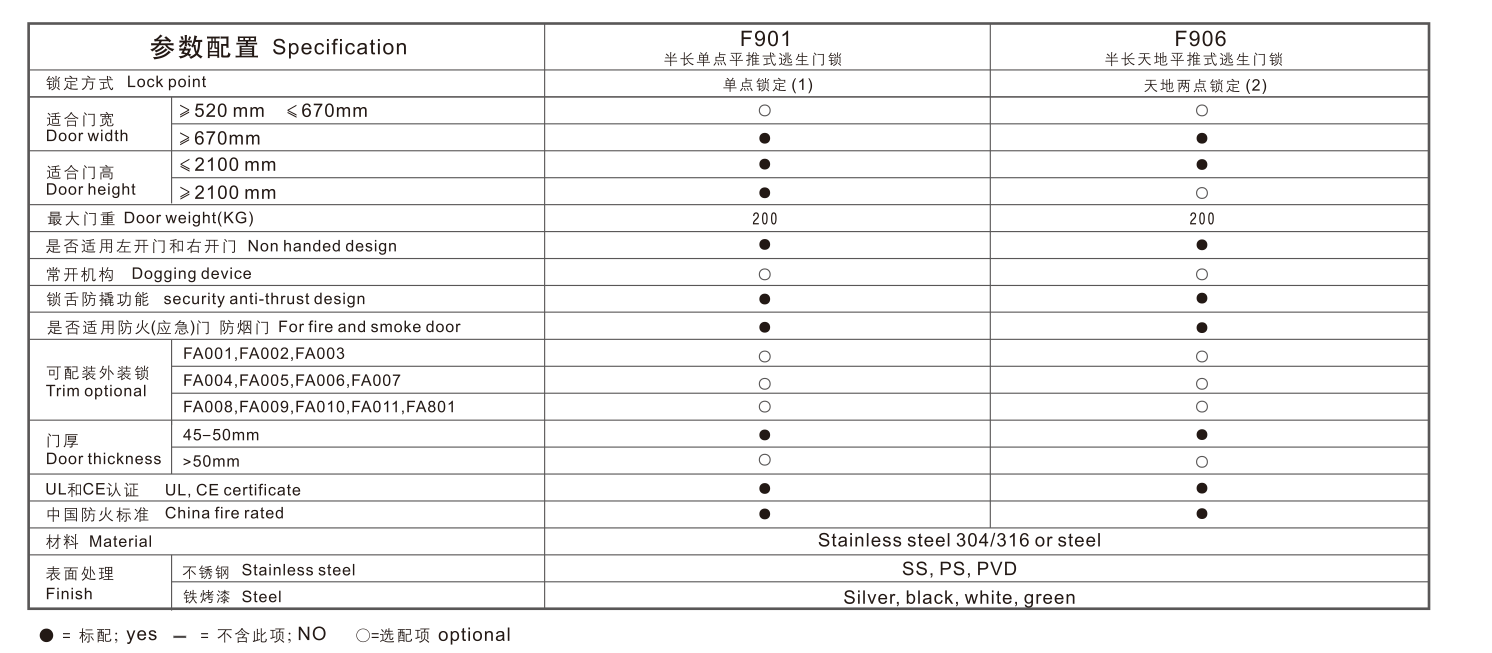

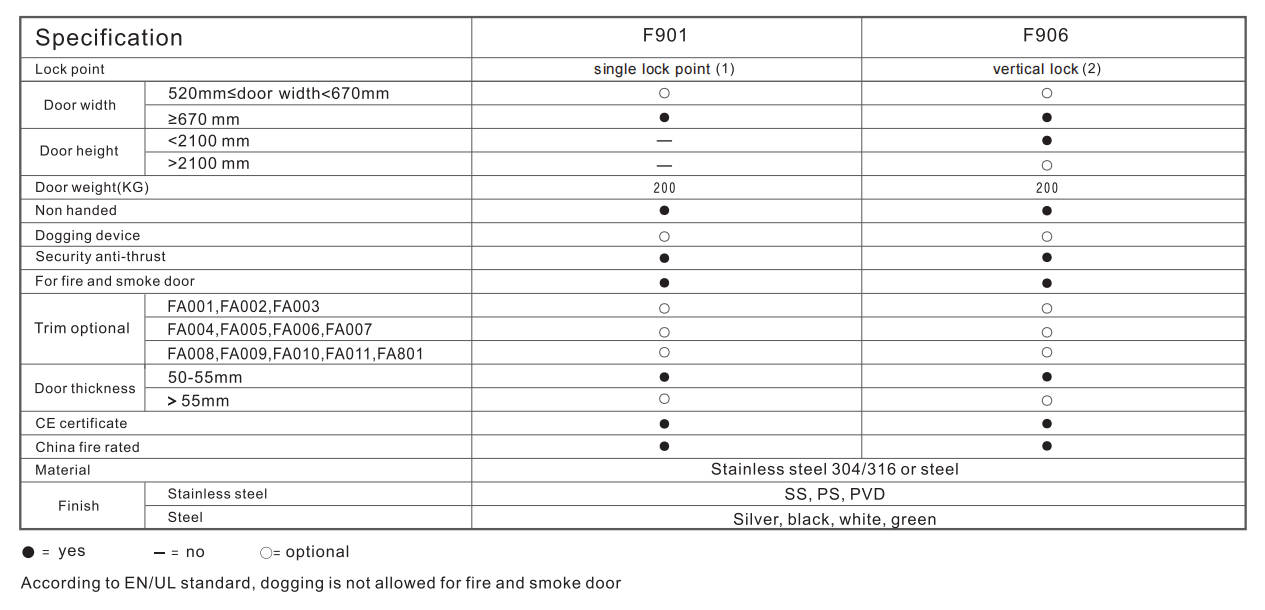

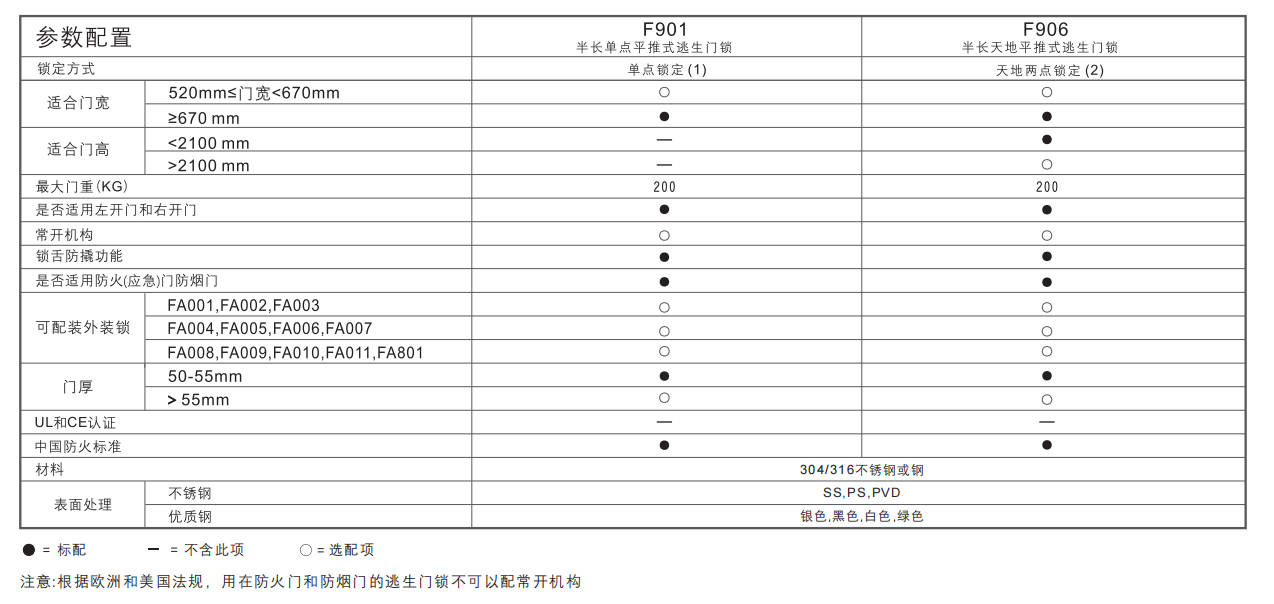

参数配置

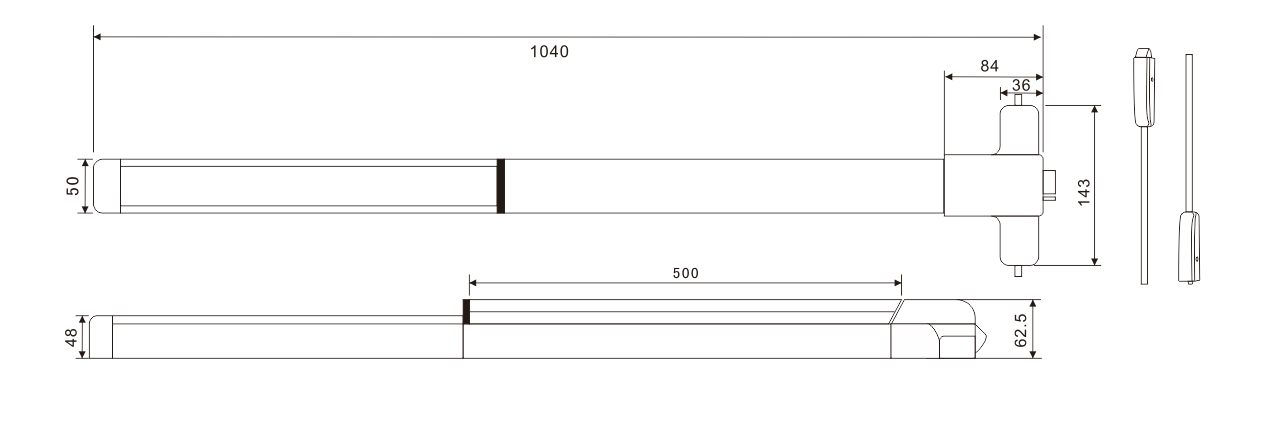

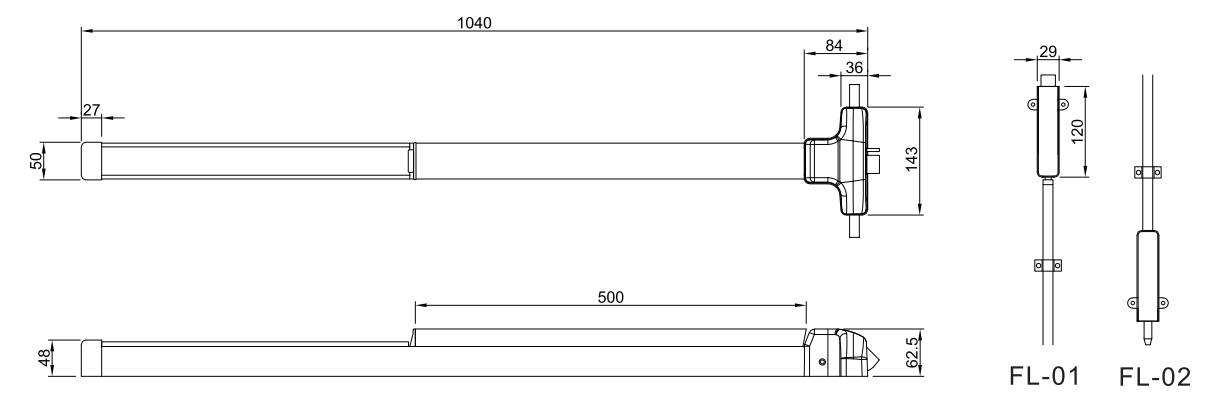

尺寸图
