1.电控收回斜舌
2.马达驱动，锁舌回缩平稳无噪音
3.12-24V供电，断电时，锁舌伸出，正常机械开启

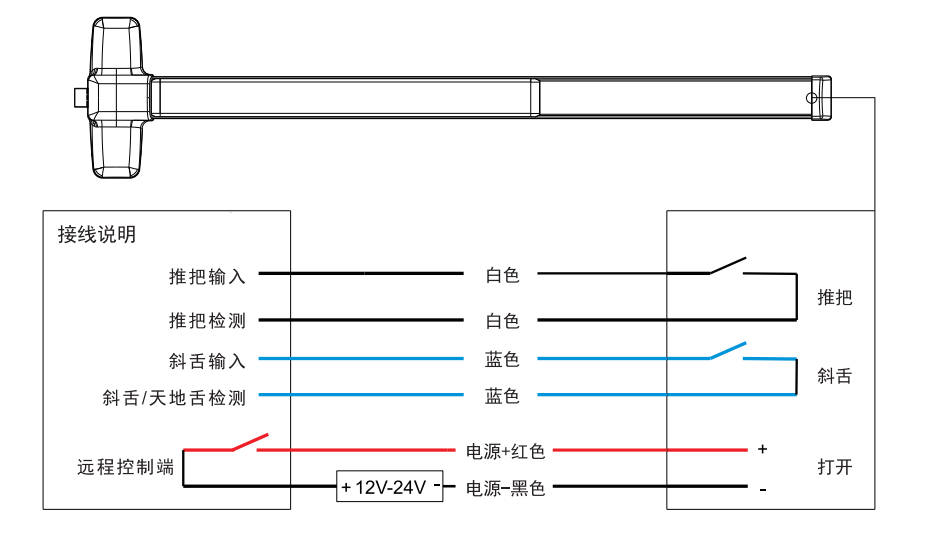

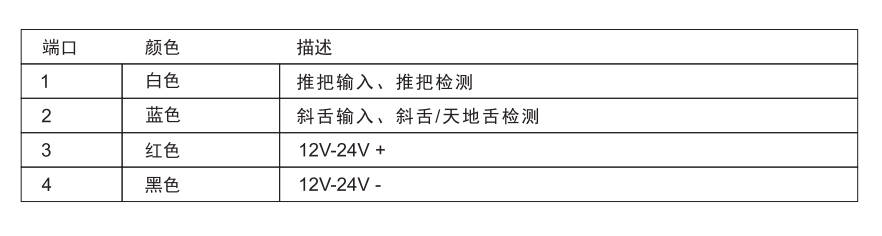

4.一组消防输入解锁信号，一组开锁反馈输出信号
5.门外可配置读卡器刷卡开门或机械锁解锁把手进入
6.监控点:推把
7.通常配合自动门机使用
8.适用无障碍通道门
9.认证:ANSI/BHMA A156.13-1级，50万次
ANSI/BHMA A156.25-1级，50万次
UL10C-3小时防火
Function:
1.Latch automatic retract.
2.Motor driving
3.Operation voltage:24V DC;Powder off become mechanism lock

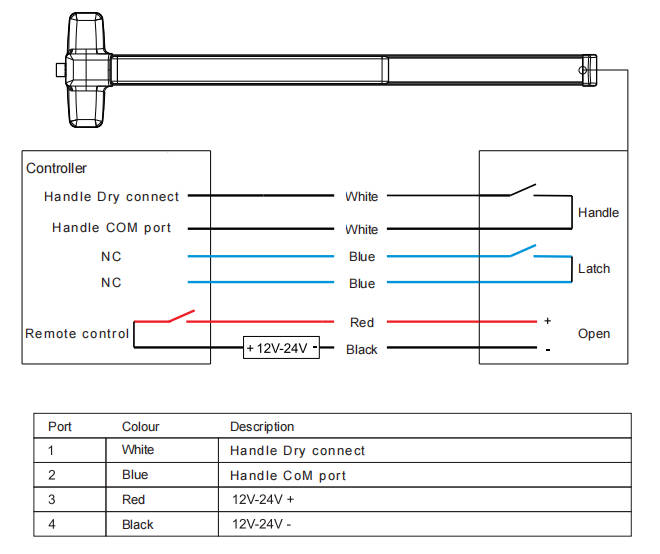

4.Input for fire rated alarm.Output for lock status.

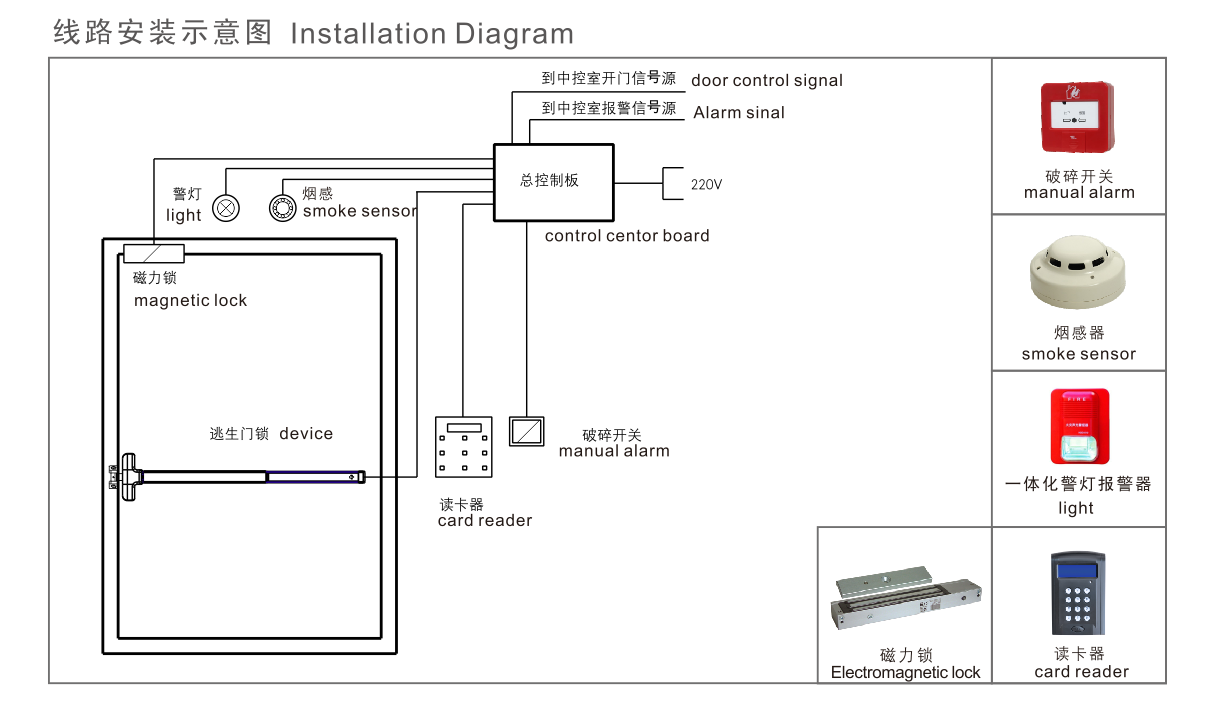

5.Work with card reader or mechanism trim.
6.Monitor touch bar.
7.Apply to automatic door.
8.For accessible pathway
9.Compliance:ANSI/BHMA A156.13 Grade1,cycle test 500,000 times
ANSI/BHMA A156.25 Grade1,cycle test 500,000 times
UL10C for 3 hours fire rated
