美标逃生门锁F104
规格型号:
F104
产品材质:
不锈钢304
表面处理:
不锈钢拉丝 SS
咨询该产品
所属品牌:
美标逃生门锁F104

1.符合ANSI/BHMA A156.3-1级,50万次寿命测试

2.符合UL10C-1.5小时防火认证

3.符合CE认证,BS EN1125机械性能20万次认证

4.符合BS EN1634-1 2小时防火认证

5.锁舌为不锈钢304精铸件,耐磨损

6.锁头盖为不锈钢或者45号钢精铸件,强度高

7.锁身选用1.2mm厚的不锈钢304或者优质钢,强度余量大

8.盐雾测试240小时,防锈能力强

9.标准配置美标可适用1000mm门宽,欧标可适用1400mm门宽

10.美标及欧标适用的最小门宽为500mm(需订做)


1.Compliance:ANSI/BHMA A156.3 grade 1, cycle test 500,000 times
2.Compliance:UL10C for 1.5 hours fire rated
3.CE Compliance:BS EN1125 mechanical performance,cycle test 200,000 times
4.Certificate:BS EN1634-1, 2 hours fire rated
5.Latch is stainless steel 304
6.Cover is stainless steel 304 precision casting
7.Case is stainless steel or steel,1.2mm thickness
8.Salt spray test for 240 hours
9.Standard configuration: 1000mm door width for ANSI/BHMA  A156.3, 1400mm door width for BS EN1125
10.Min.500mm door width is optional

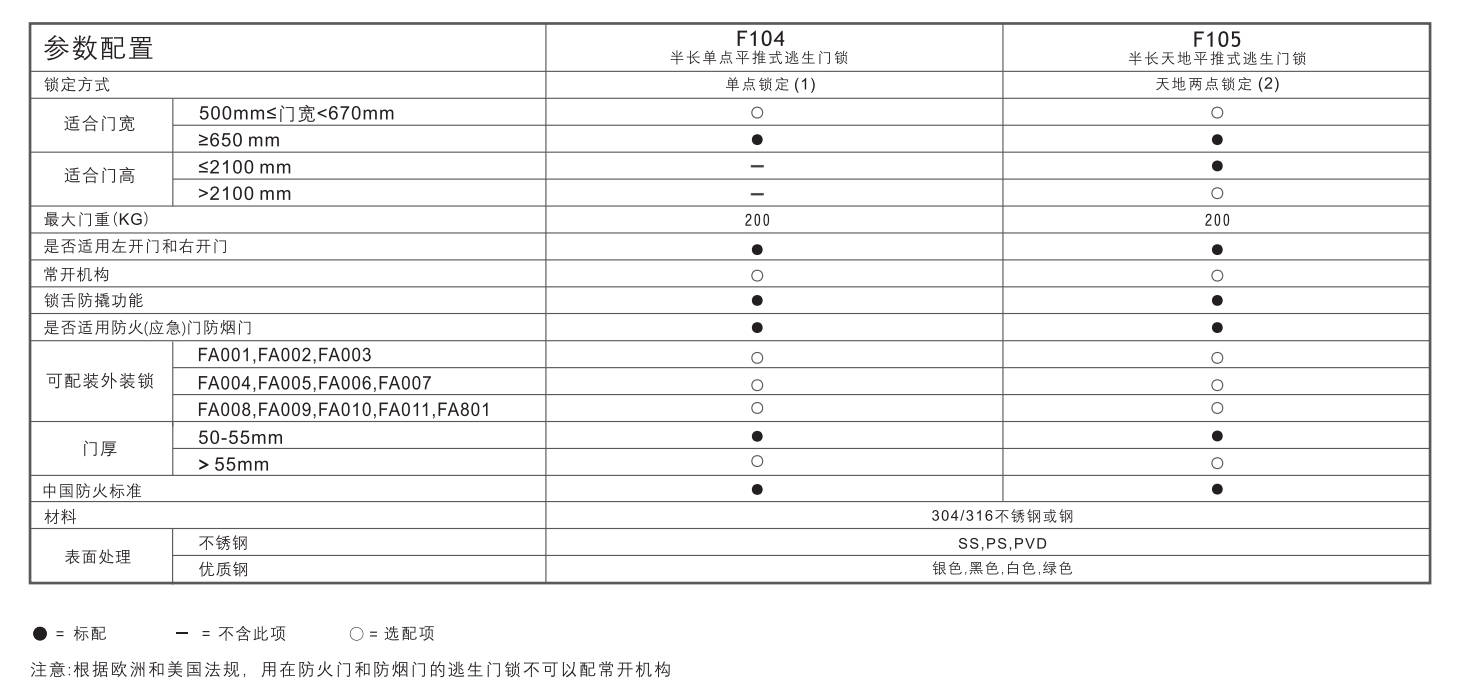

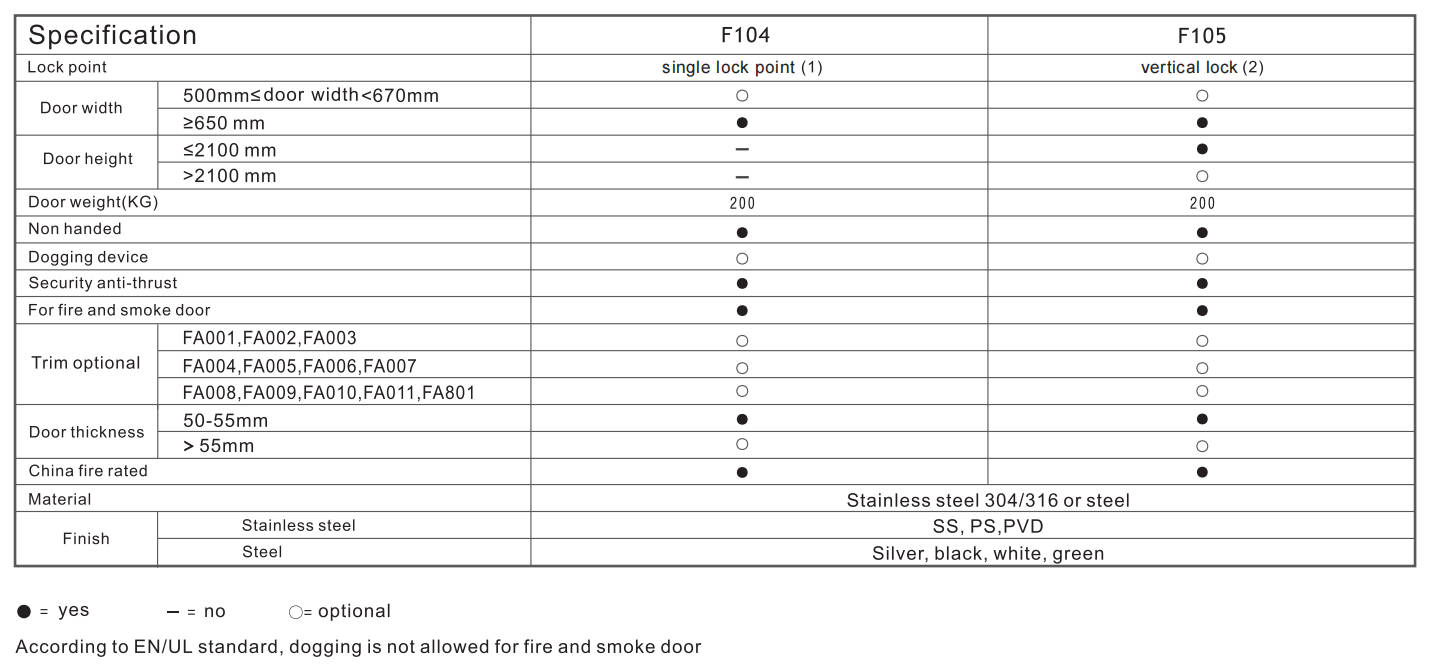

参数配置

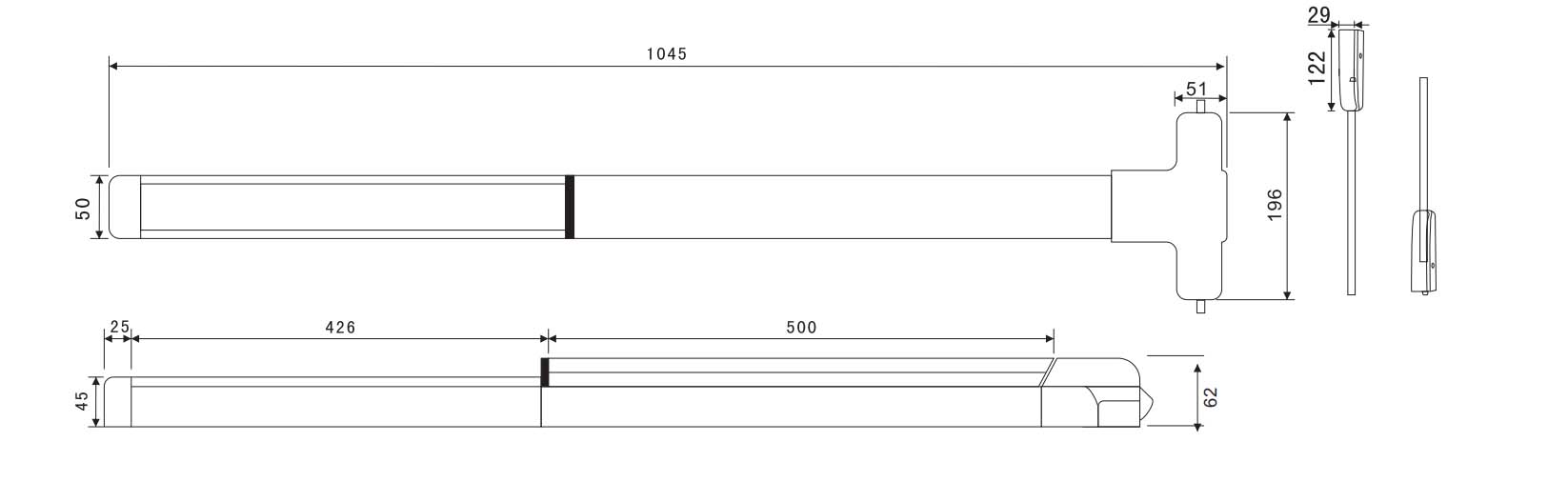

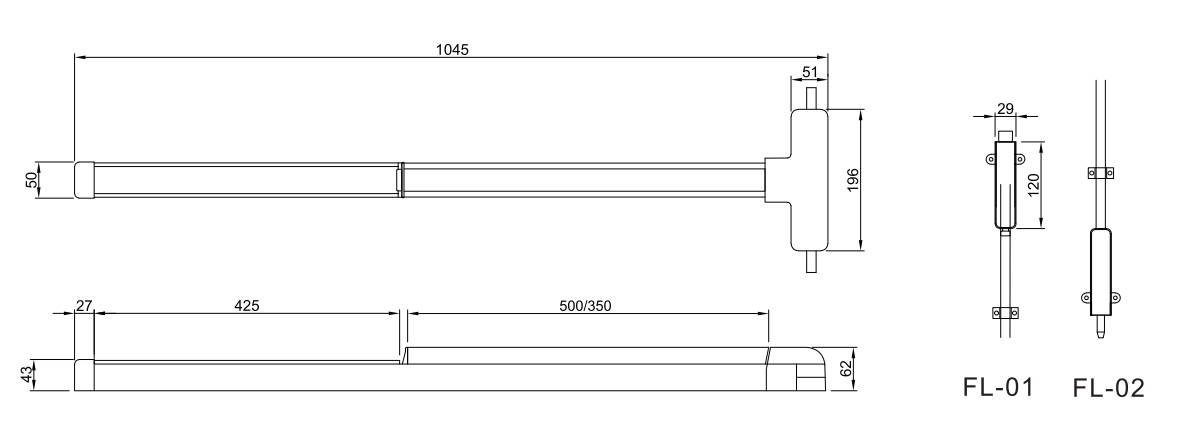

尺寸图
