欧标隐藏式逃生门锁F563 F566
规格型号:
F563 F566
产品材质:
不锈钢304
表面处理:
黑色 银色 不锈钢拉丝 SS
咨询该产品
所属品牌:
欧标隐藏式逃生门锁F563 F566

1.符合CE认证,BS EN1125机械性能20万次认证

2.符合BS EN1634-1 2小时防火认证

3.锁舌为不锈钢304精铸件,耐磨损

4.锁头盖:工程塑料,铁,不锈钢304

5.压杆:铁,不锈钢304
6.盐雾测试240小时,防锈能力强
7.不分左右开启
8.表面处理:不锈钢/银色/黑色/抛光/PVD

适用于型材门及有框玻璃门


1.Ce Certificate:BS EN1125 mechanical performance,cycle test 200,000 times
2.Certificate:BS EN1634-1, 2 hours fire rated
3.Latch bolt is stainless steel 304
4.Cover: plastic, steel,, stainless steel 304
5.Cross bar: steel,stainless steel 304
6.Salt spray test for 240 hours
7.Non-handed
8.Finish:
1)Standard:stainless steel satin,silver painted
2)Optional: Polishing,PVD,Black, Red
Suitable for profile doors and framed glass doors

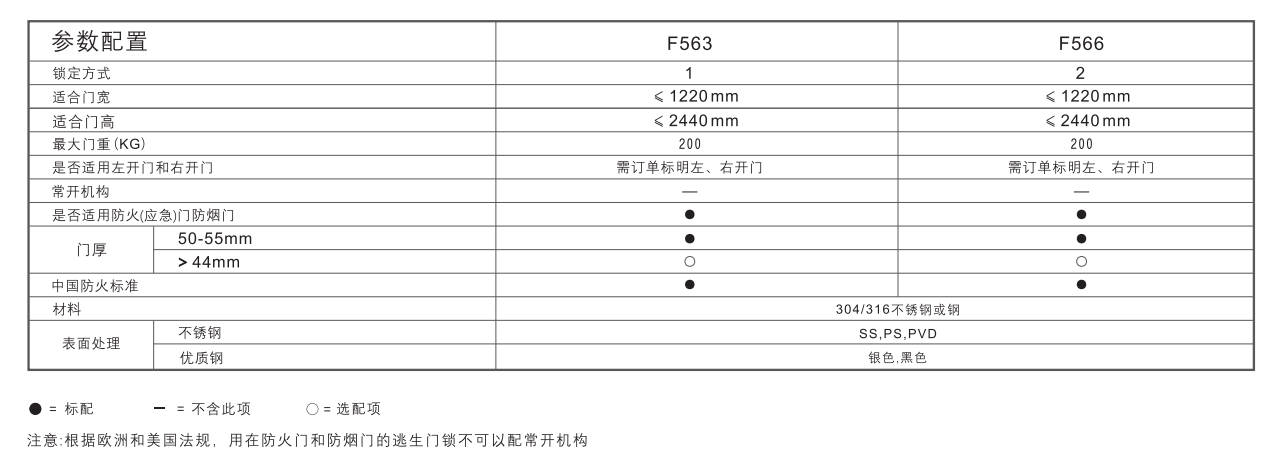

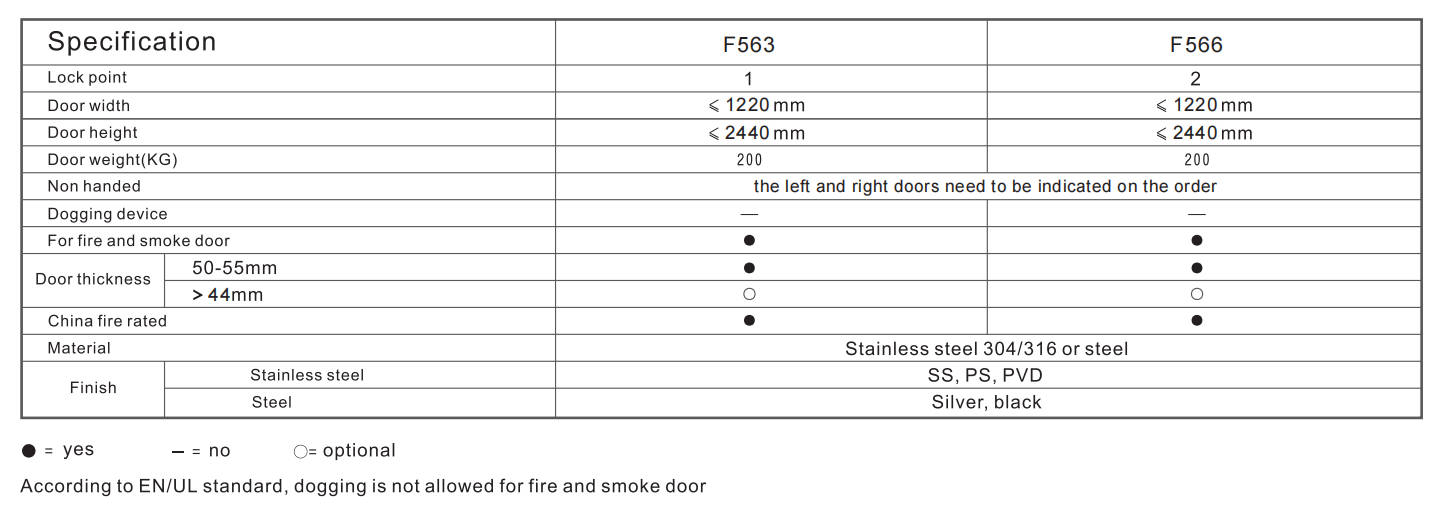

配置图

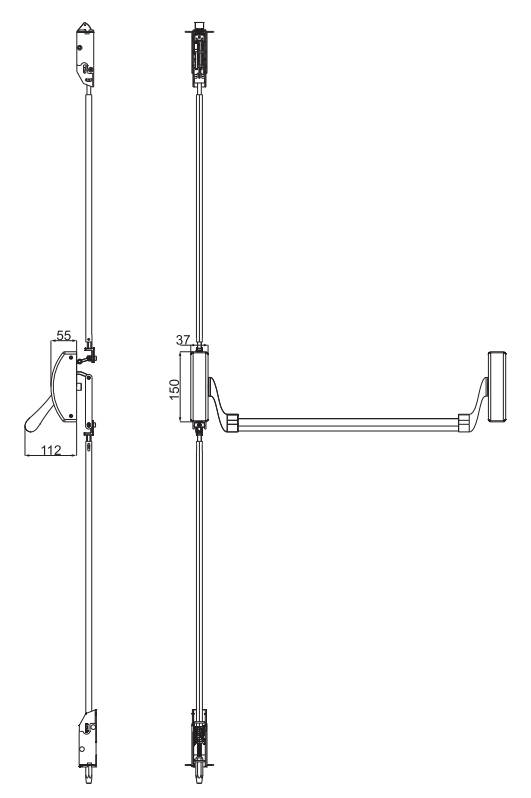

尺寸图
