抗暴逃生门锁F586 F588
规格型号:
F586 F588
产品材质:
不锈钢304
表面处理:
不锈钢拉丝 SS
产品认证:
咨询该产品
所属品牌:
抗暴逃生门锁F586 F588

1.符合BS EN 13123/13124 防爆认证标准

2.通过±6Kpa抗振动200万次启闭测试

3.通过GB30051-2013-级检测,3小时防火

4.通过GB7106-2008 建筑外门窗气密、水密、抗风压性能分级测试

5.门锁整体为不锈钢304精铸件,传动采用齿轮结构强度高

6.整锁盐雾测试240小时,IP65级防水防尘设计

7.系列化,模块化设计,可以满足单点锁定,2点锁定,3点锁定等设计需求

8.满足高风压,强度场所的需求,如隧道、化工等

9.可定制门锁信号输出装置,连接消防及门禁控制系统


1. Certificate:BS EN 13123/13124 explosion-proof certification standards
2. Passed the ±6Kpa vibration resistance test for 2000,000 cycles
3. Certificate:GB30051-2013 Grade 1 for 3 hours fire rateed
4. Certificate:GB7106-2008 test for the airtightness, water resistance, and wind pressure resistance classification of building exterior doors and windows.
5. Door lock is stainless steel 304 , transmission adopts gear structure with high strength
6. Complete lock salt spray test for 240 hours and IP65 level waterproof and dustproof design
7. Series and modular design can meet the design requirements for single-point locking, double-point locking, and three-point locking
8. Meets the requirement for high wind pressure and strength areas, such as tunnels and chemical industries
9. Customizable door lock signal output device, connect to fire protection and access control system

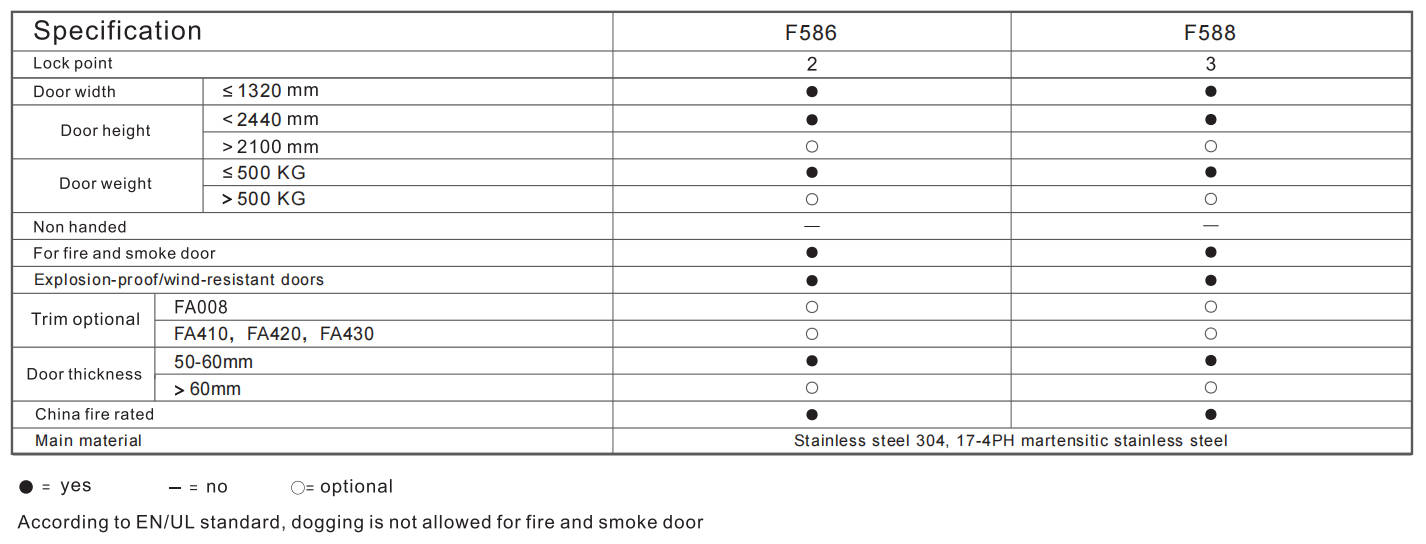

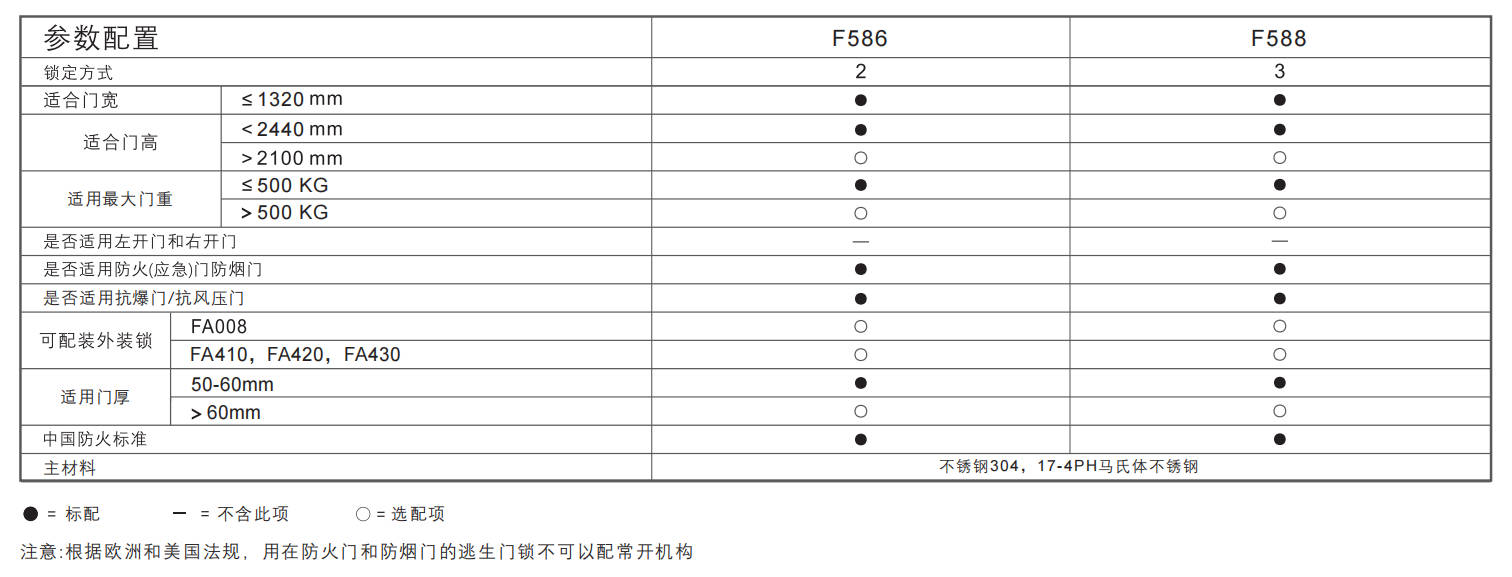

配置图
尺寸图
