For wooden doors,flush doors
Easy to install and adjust
With soft-closing function
Concealedinstallation

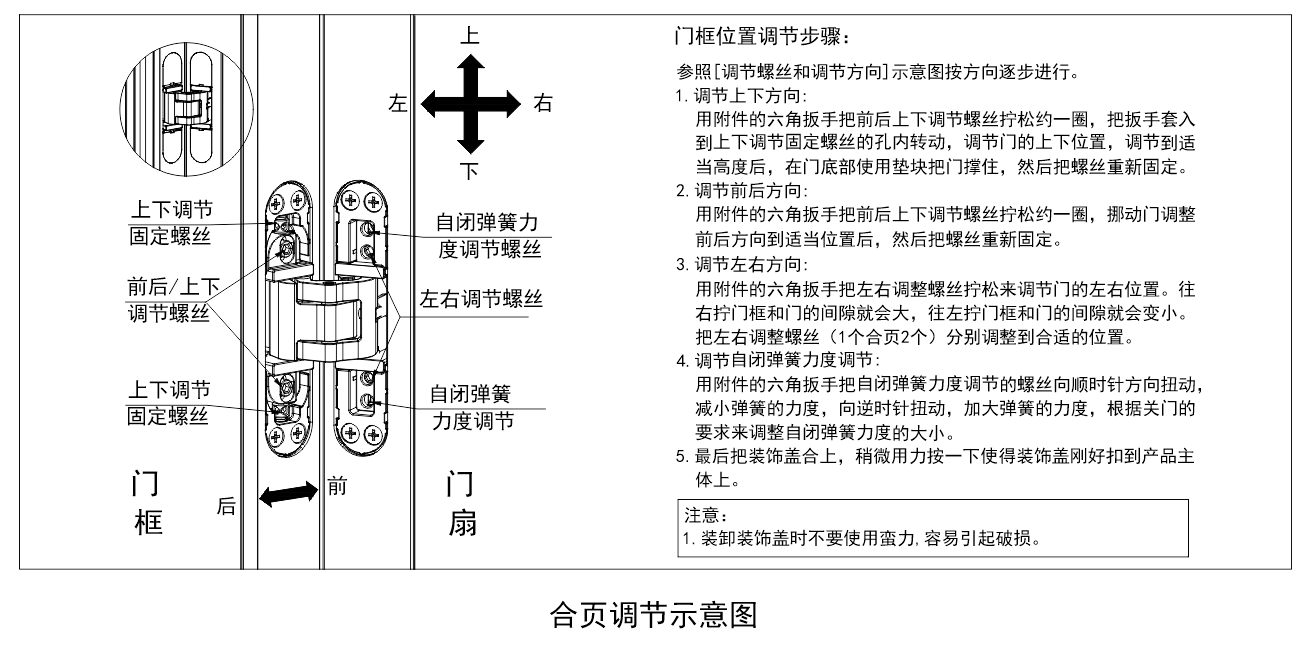

With 3D adiustment: vertical+2.5mm,horizontal-2mm、+3mm,depth+1mmMax Openingangle:180°
技术参数
1套合页最大承重(1阻尼+2普通):60kg
门扇厚度:36-55mm
门扇最大宽度:900mm
门扇最大高度:2100mm
材质:锌合金
表面处理:哑光铬,亮金,枪黑
Max.door weight with one set hinge(1pc damping+2pc normal):60kg
Doorthickness:36-55mm
Max.door width:900mm
Max.door height:2100mm
Materials:Zinc alloy
Finish:SC,PB,GB
