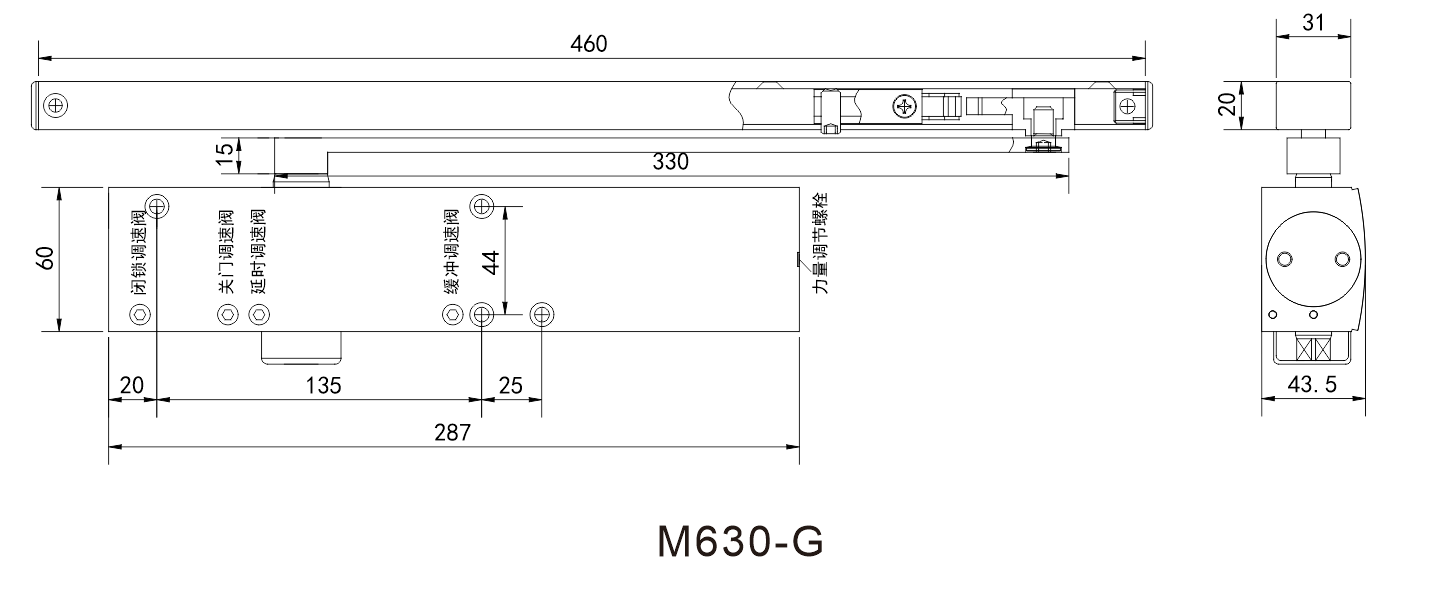

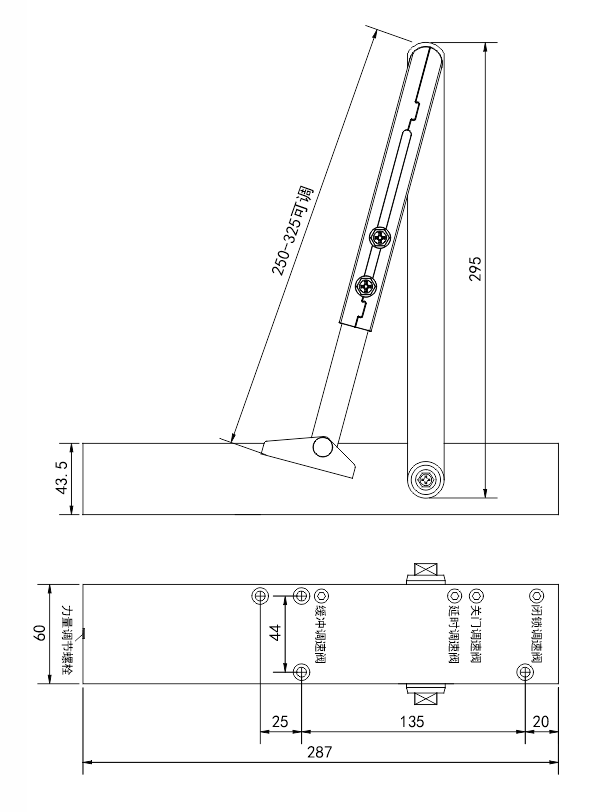

M630明装式闭门器
执行标准:欧盟EN1154,EN1634-2H标准
中国XF93-20041级防火标准
功能特性:开门缓冲功能 (BC)标配
关门延时功能 (DA)可选
闭锁速度可调,闭门速度可调
适用于木质门、金属门等
滑槽臂和普通折臂可选
滑槽停门块和停门折臂可选
材质说明:铝铸一体式缸体,铸铁摇臂
表面处理:银白、古铜、金/银色
技术参数:闭门力量EN1-6,承重60-150KG
最大门宽1400MM门最大开启角度180°
闭门速度180-15°可调
闭锁速度15-0°可调
Compliance:EN1154,EN1634-2H
XF93-2004 G1,fire rated
Function:Back check function is included
Delay action function is optional
Adjustable closing & latching speed
Suit for wooden and steel door
Scissor arm and slide arm are available
Optional builtin HOLD-open
Non-handed
Material:
Cast aluminum alloy body
Finish:
Silver, optional golden
Feature:
Spring power EN1-6,door weight 60-150kg
Max door width 1400mm
Max opening angleis 180degree
Closing speed adjustable in the range 180-15degree
Latching speed adjustable in the range 15-0degree
