机电锁（离线）72-55TMC
关门时，自动上锁，方舌弹出，斜舌固定不可缩回。
操作执手或逃生锁推把以后，锁体内部解锁，斜舌被释放，方舌收回
室内外均可用钥匙解锁，室内始终可解锁 (逃生功能)
锁体不含旋钮 (DND功能)
电压:3.3V - 6VDC
监控点:保险舌、方舌、把手、钥匙
适用环境:工作温度范围-20”~+60°

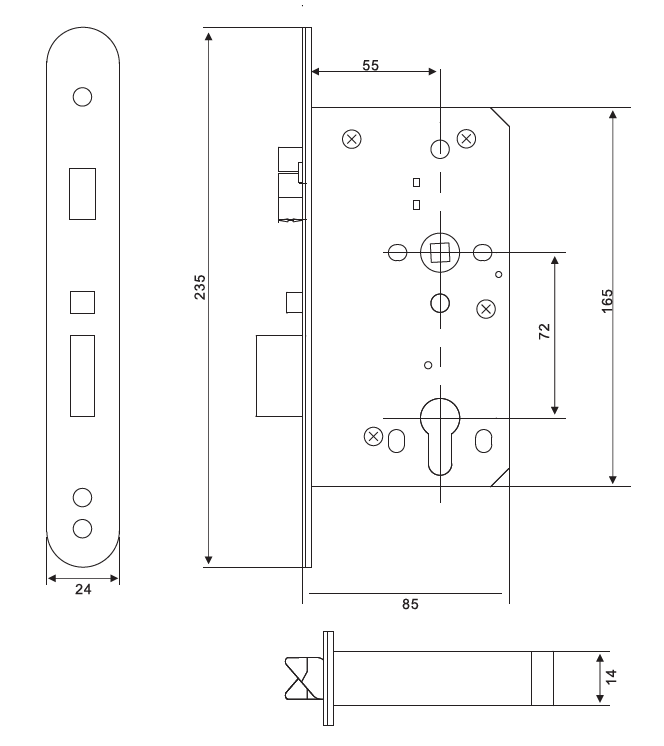

边距:55mm
中心距:72mm
斜舌:304不锈钢
方舌:304不锈钢，伸出长度21mm
门厚:标配35-64mm
门缝:3-5mm
不分左右
锁芯:标准欧标锁芯
表面处理:不锈钢拉丝
When the door close the lock becomes locked automatically.
The dead bolt throws out and the latch bolt is blocked.
When the controlled handle or panic handle is down, the dead bolt iswithdraw inside the lock case and the latch bolt is release consequently
Mechanical opening using key cylinder is always possible from both sidesand the lock can be opened by inside handle (anti-panic feature)
The lock is without thumbturn(DND function)
Voltage:3.3V-6VDCMonitoring:Auxiliarylatch(ALM) Dead bolt(DM)Handle down(HD)Key override(KO)Operational temperature range -20C to +60CBackset:55mmDistance:72mmLatchbolt:Stainless Steel304Deadbolt:Stainless Steel 304.projection 21mmDoor thickness:Standard applications 35 to 64mmDoor Clearance:3-65mm
None handed
Cylinder:Standard European profile cylindersStandard Finishes:Satin finish
