美标逃生门锁F909
规格型号:
F909
产品材质:
不锈钢304
表面处理:
不锈钢拉丝 SS
咨询该产品
所属品牌:
美标逃生门锁F909

1. UL305,ANSI GRADE1级认证,50万次寿命

2. UL10C防火认证

3. CE认证,EN1125机械性能20万次认证,EN1634防火认证

4. GB30051-2013 一级检测,90分钟防火

5.锁舌为不锈钢304精铸件,耐磨损;

6.锁头盖为不锈钢,强度高

7.锁身选用1.2mm厚的不锈钢304或者优质钢,强度余量大

8.盐雾测试240小时,防锈能力强

9.标准配置美标可适用750mm门宽,欧标可适用1000mm门宽

10.定做最大门宽,美标可适用1400mm门宽,欧标可适用1066mm门宽

11.美标及欧标适用的最小门宽为500mm(需订做)


1.Compliance : UL305 ANSI/BHMAA156.3 grade 1 , 500,000 times cycle test

2.Compliance: UL 10C fire rated

3.Compliance: EN1125,200,000 times cycle test; EN 1634 fire rated

4.GB30051-2013 Grade 1 fire-rated

5.Latch is stainless steel 304

6.Cover is stainless steel 304 or steel

7.Case is stainless steel or steel,1.2mm thickness

8.Salt spray test, 240 hours

9.For 750mm to 1 000mm door width

10.Max.1400mm door width for ANSI/BHMAA156.3,Max.1066mm for EN1125

11.Min. 500mm door width is optional

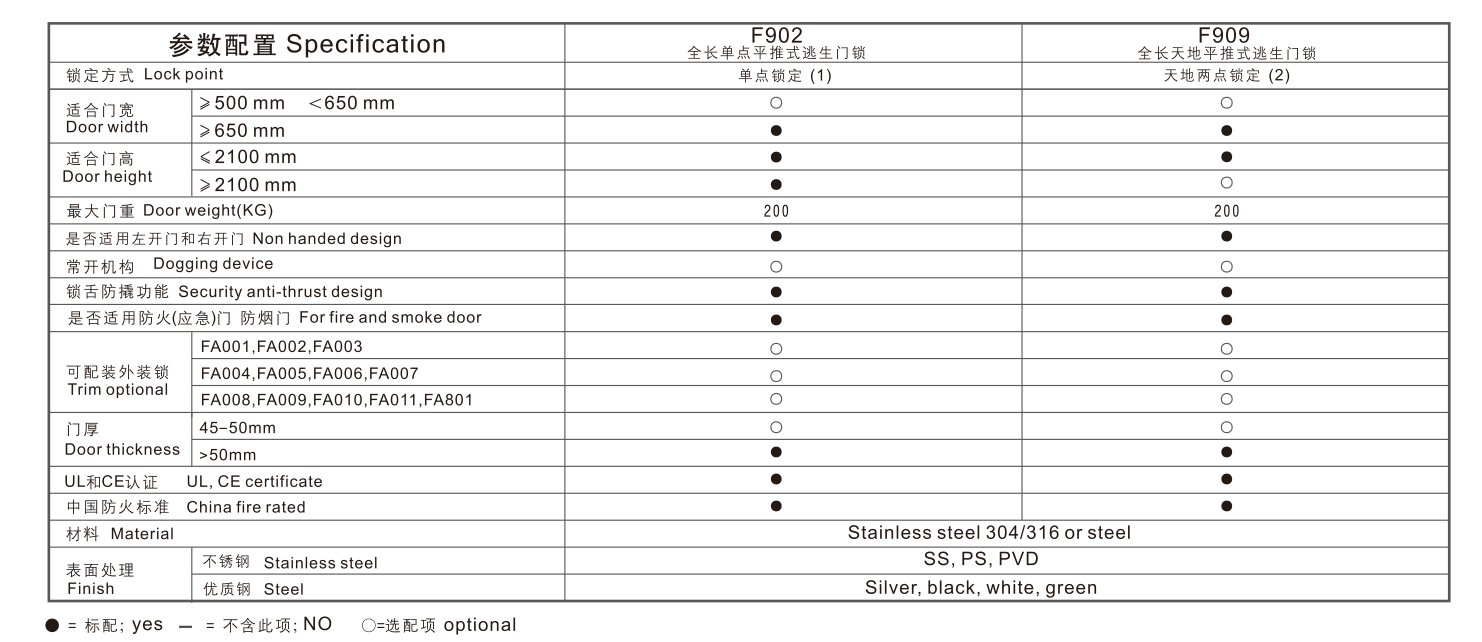

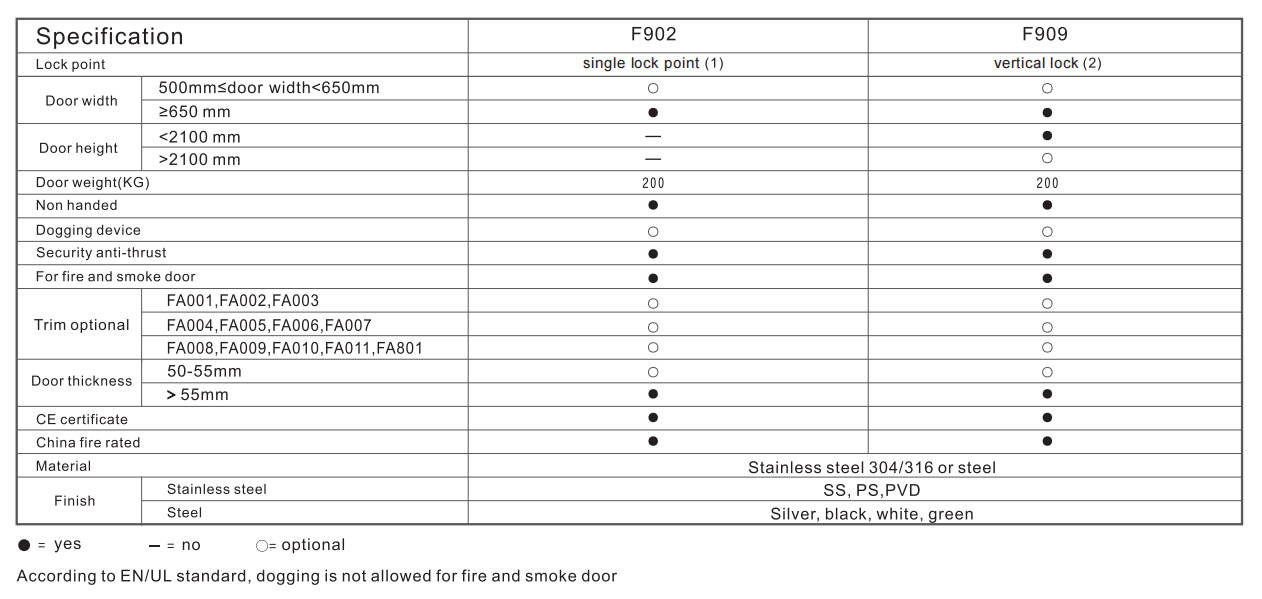

参数配置

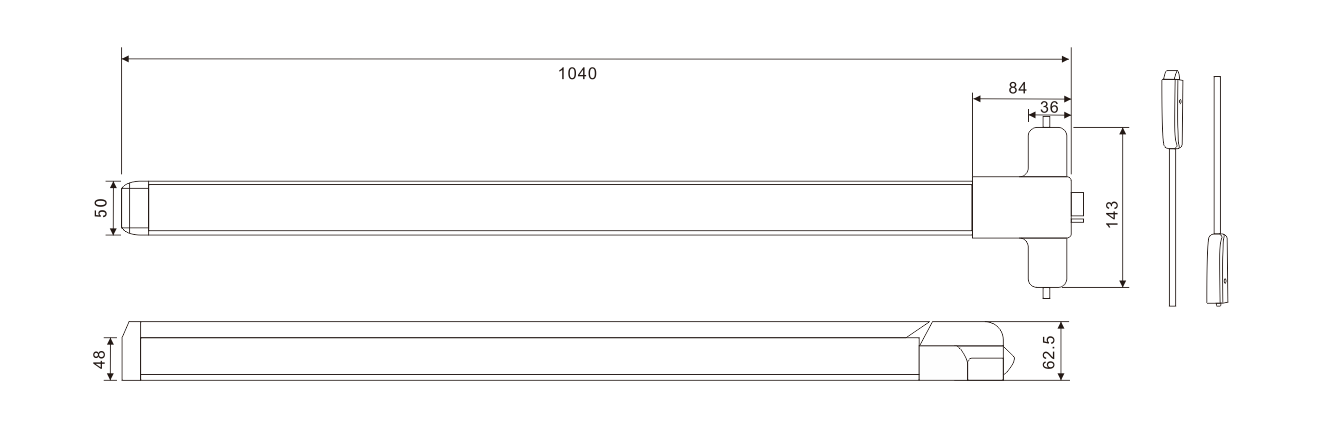

尺寸图
