功能说明
1.门内①:工作时压把手语音报警，延时1-15秒后报警解除，推把开门
门内②:采用读卡器授权的方式，读卡授权解除报警功能，推把开门
门内③:采用主体钥匙复位功能，解除报警，推把开门

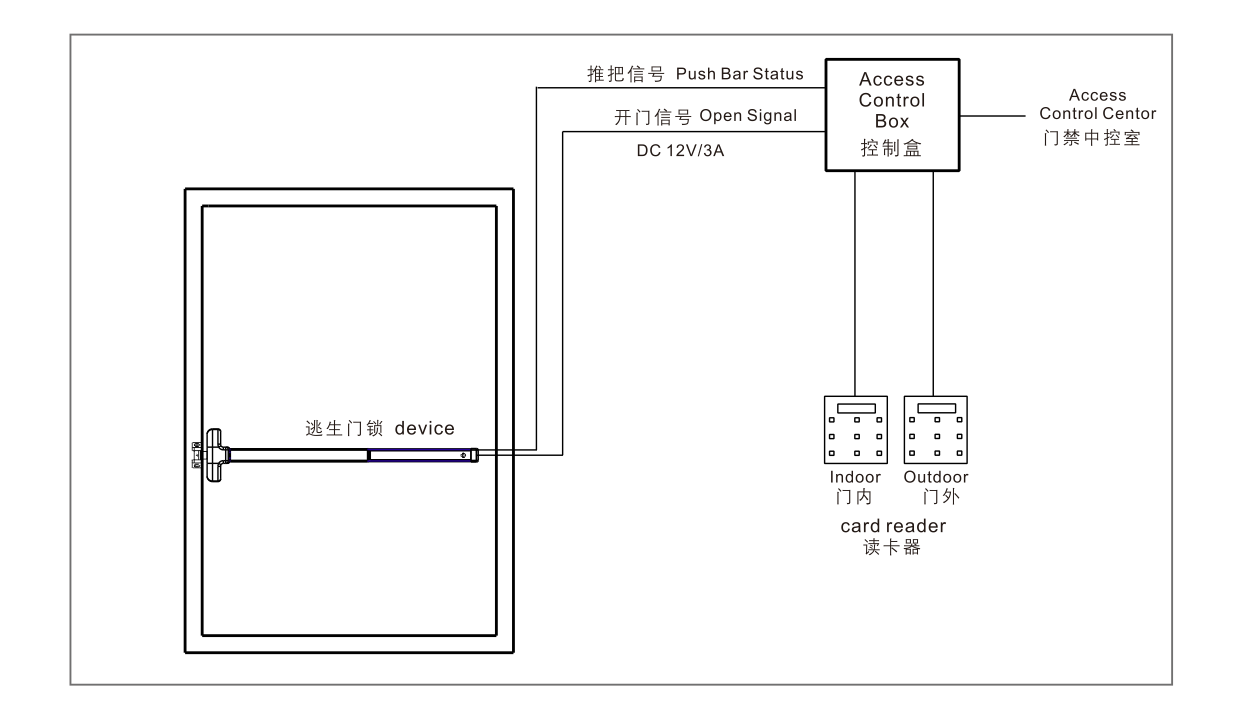

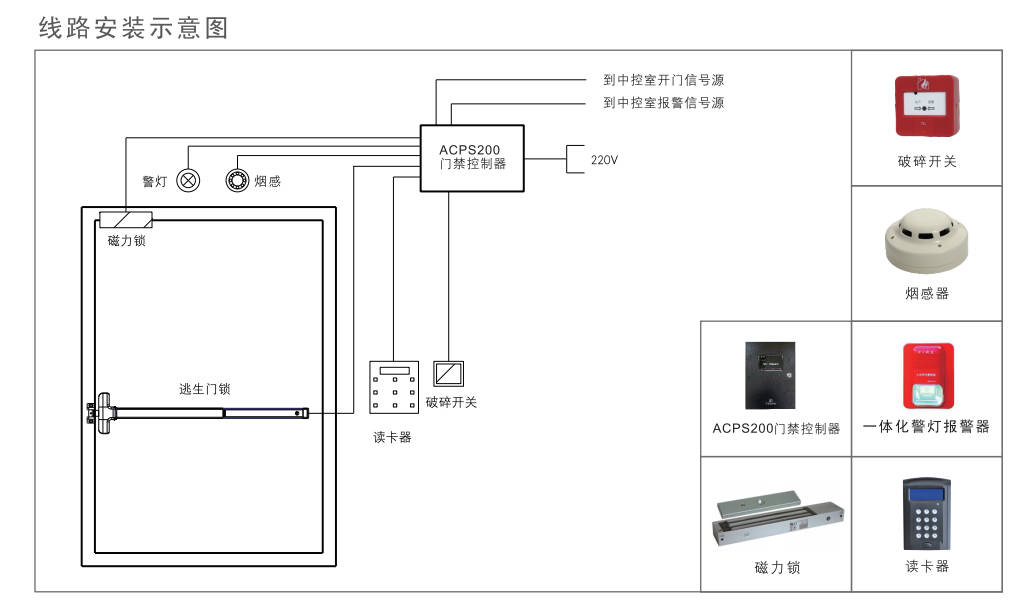

门内④:产生的报警信号通过门禁控制器传达到控制中心
门外①:配置电控把手锁，需读卡授权释放把手(断电开)开门，压把手开门
门外②:配置机械把手锁，需钥匙解锁把手，压把手开门
2.配置门禁控制器主箱进行联网工作
3.以上功能可适用单门门锁和双门门锁;
4.可选择单机数显型:ADE
5.认证:ANSI/BHMA A156.13-1级，50万次 ANSI/BHMA A156.25-1级，50万次
UL10C-3小时防火
6.可选ANSI/BHMA A156.29-1级，50万次认证
Function:
1.Interior ①: touch bar more than 2 seconds, the alert is triggered,only after
1-15 seconds(by settings), alarm stop and door can be open
Interior ②: With authority card, without any delay and no alarm,door open
Interior ③: With key, without any delay and no alarm, door open

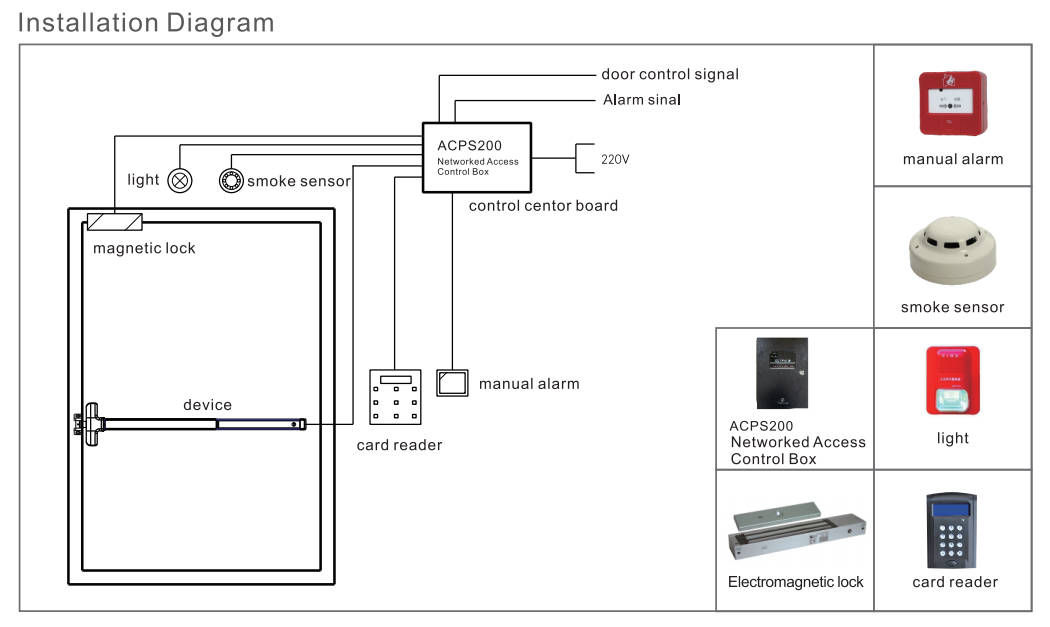

Interior ④:the alert is triggered, the signal is sent to center
control system.
Exterior ①:with electrified trim, authority card to open the door
Exterior ②: with mechanism trim, authority key to open the door
2.Access control controller to connect internet
3.Apply to single and double door
4.Standalone model ADE is available
5.Compliance:ANSI/BHMA A156.13 grade 1,cycle test 500,000 times
ANSI/BHMA A156.25 grade 1,cycle test 500,000 times
UL10C for 3 hours fire rated
6.Optional ANSI/BHMA A156.29 grade 1,cycle test 500,000 times
