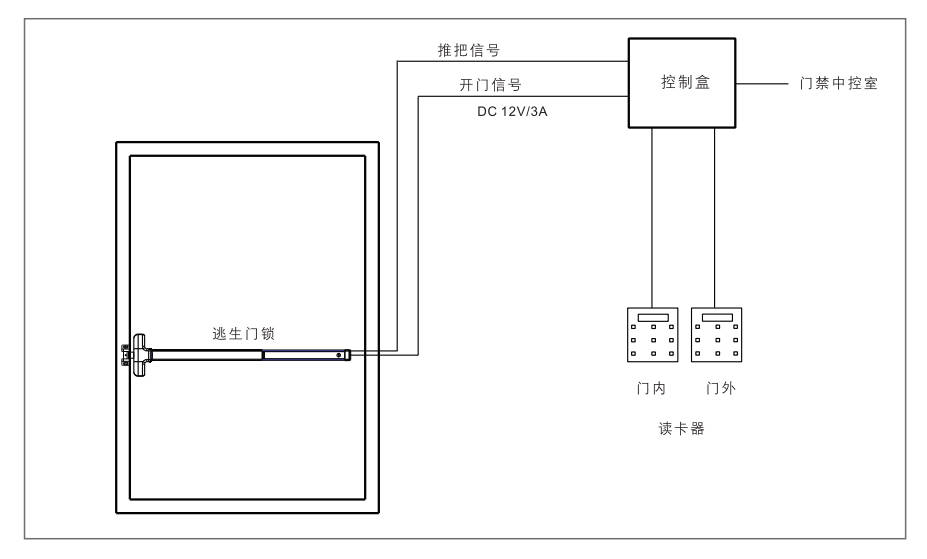

2、配置门禁控制器主箱进行联网工作
3、门锁标配把手监控，钥匙监控、保险舌监控，用户不能自行增减
5、可选择单机数显型：ADE
6、可选ANSI/BHMA A156.29-1级50万次认证
1. Interior 1: touch bar more than 2 seconds, the alert is triggered, only after 1-15 seconds(by settings) ，alarm stop and door can be open.
Interior 2: With authority card, without any delay and no alarm, door open.
Interior 3: With key, without any delay and no alarm, door open.
Interior 4: the alert is triggered, the signal is sent to center control system.
Exterior 1: with electrified trim, authority card to open the door
Exterior 2: with mechanism trim, authority key to open the door

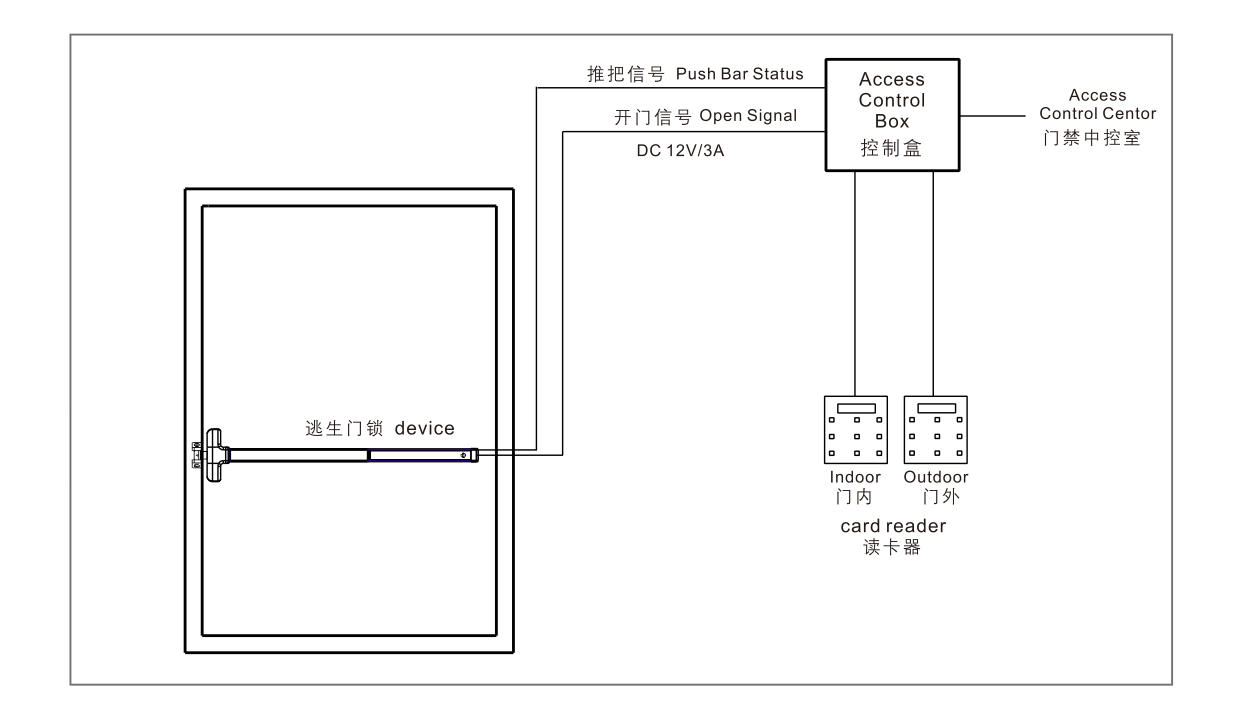

2. Access control controller to connect internet.
3. Including 3 switches to mornitor handle, key, aulixiary latch.
4. Apply to single and double door.
5. Standalone model ADE is available.
6. Certificate ANSI/BHMAA156.3, grade 1 ,cycle test 200,000 times
