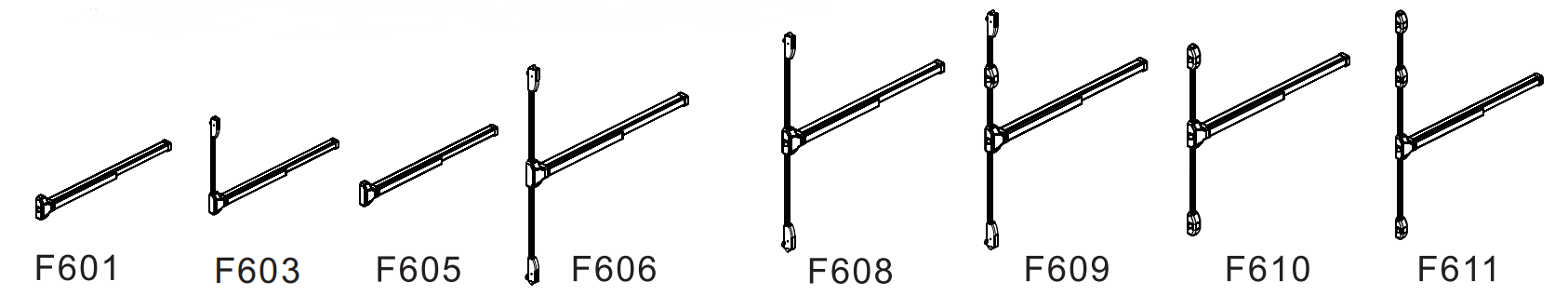

欧标标逃生门锁F601-F611
规格型号:
F601-F611
产品材质:
不锈钢304
表面处理:
不锈钢拉丝 SS
产品认证:
咨询该产品
所属品牌:
F601-F611欧标逃生门锁

1.通过ANSI/BHMA A156.3-1级认证,50万次寿命测试

2.通过CE认证,BS EN1125机械性能20万次认证

3.通过BS EN1634-1, 2小时防火认证

4.通过GB30051-2013一级检测,1.5小时防火

5.锁舌为不锈钢304精铸件,耐磨损

6.锁头盖为不锈钢,强度高

7.锁身选用1.2mm厚的304不锈钢钢管

8.盐雾测试240小时,防锈能力强

9.最小适用门宽为520mm(需定制)

10.系列化,模块化设计,可以满足单点锁定,美式/欧式插芯锁锁定,2点锁定,3点锁定,4点锁定等设计需求

11.3点4点式锁定,满足高风压,强度场所的需求如地铁、车站、机场、集装箱等需求

12.F608通过抗风压标准,BS EN12211-20166000Pa


1.Certificate:ANSI/BHMA A156.3 grade 1,cycle test 500,000 times
2.CE Certificate:BS EN1125 mechanical performance,cycle test 200,000 times
3.Certificate:BS EN1634-1, 2 hours fire rated
4.Certificate:GB30051-2013 Grade 1 for 1.5 hours fire rated
5.Latch is stainless steel 304
6.Cover is stainless steel 304 or steel
7.Push baris 1.2mm thickness
8.Salt spray test for 240 hours
9.Use for 520-1000m width door
10.Modularized design, single lock point is easy to change into 3 and 4 lock points
11.Three or four point locks for subway, bus station, airport and container etc
12.Certificate:F608,BS EN12211-2016 6000Pa

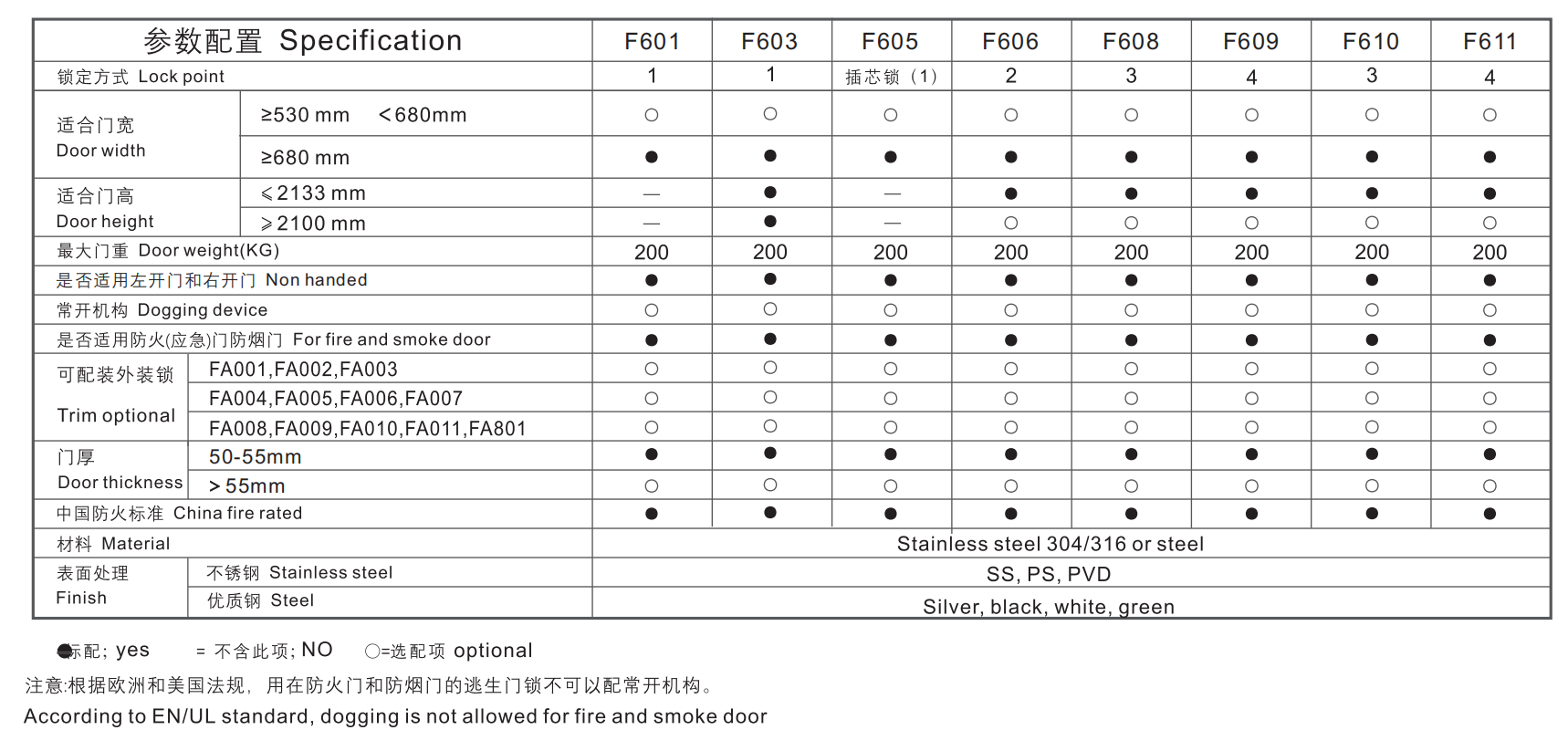

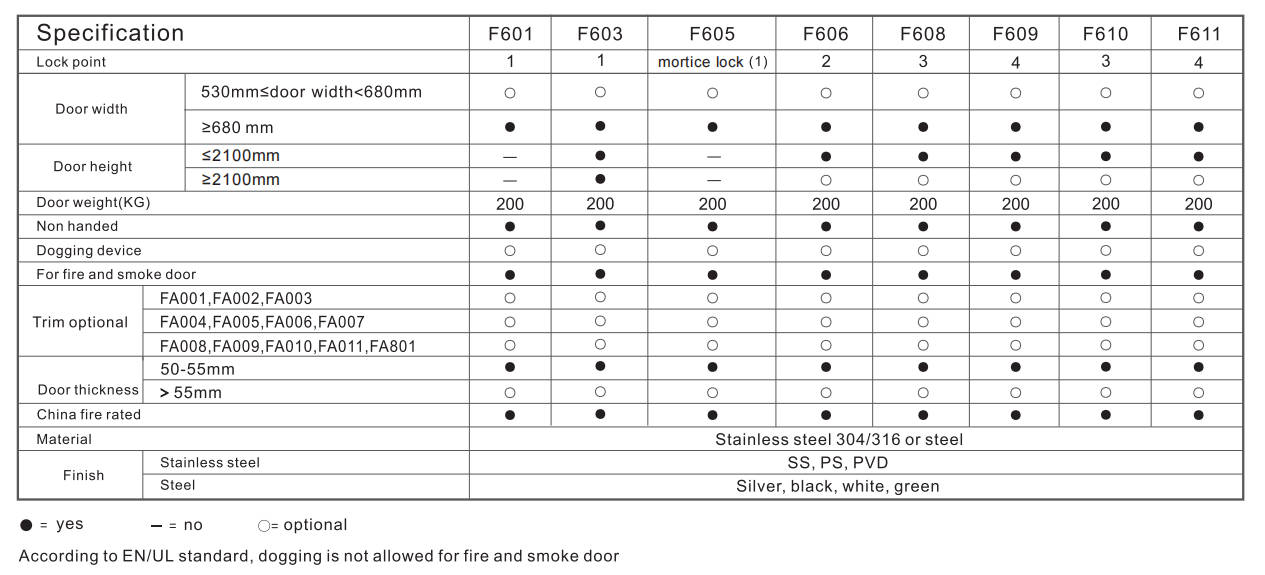

参数配置

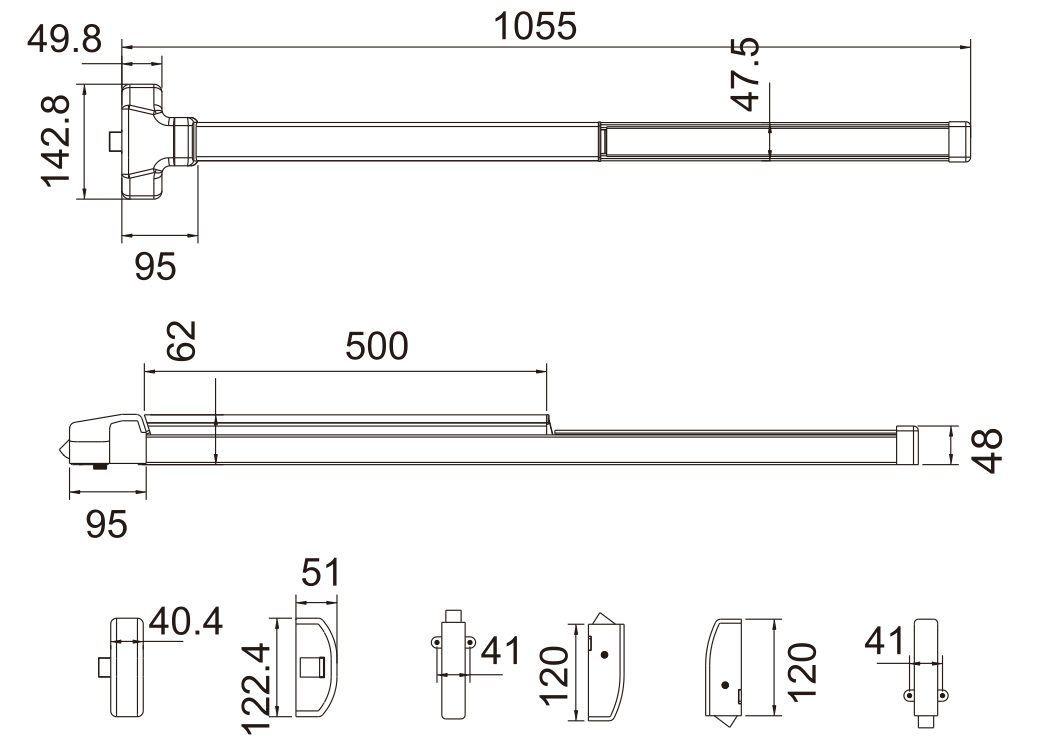

尺寸图
