美标逃生门锁F102
规格型号:
F102
产品材质:
不锈钢304
表面处理:
不锈钢拉丝 SS
产品认证:
咨询该产品
所属品牌:
美标逃生门锁F102

1.通过ANSI/BHMA A156.3-2级,25万次寿命测试
2.通过UL10C-1.5小时防火认证

3.通过CE认证,BS EN1125机械性能20万次认证

4.通过BS EN1634-1 2小时防火认证5.锁舌为不锈钢304精铸件,耐磨损

6.锁头盖为不锈钢或者45号钢精铸件,强度高

7.锁身选用1.2mm厚的不锈钢304或者优质钢,强度余量大

8.盐雾测试240小时,防锈能力强

9.标准配置美标可适用1852mm门宽,欧标可适用1543mm门宽

10.美标及欧标适用的最小门宽为500mm(需订做)


1.Certificate:ANSI/BHMA A156.3 grade 2,cycle test 250,000 times
2.Certificate:UL 10C for 1.5 hours fire rated
3.CE Certificate:BS EN1125 mechanical performance, cycle test 200,000 times
4.Certificate:BS EN1634-1, 2 hours fire rated
4.Latch is stainless steel 304
5.Cover is stainless steel 304 or steel.
6.Case is stainless steel or steel,1.2mm thickness
7.Salt spray test, 240 hours
8.Standard configuration:1852mm door width for ANSI/BHMA  A156.3, 1543mm door width for BS EN1125
9.Min.500mm door width is optional

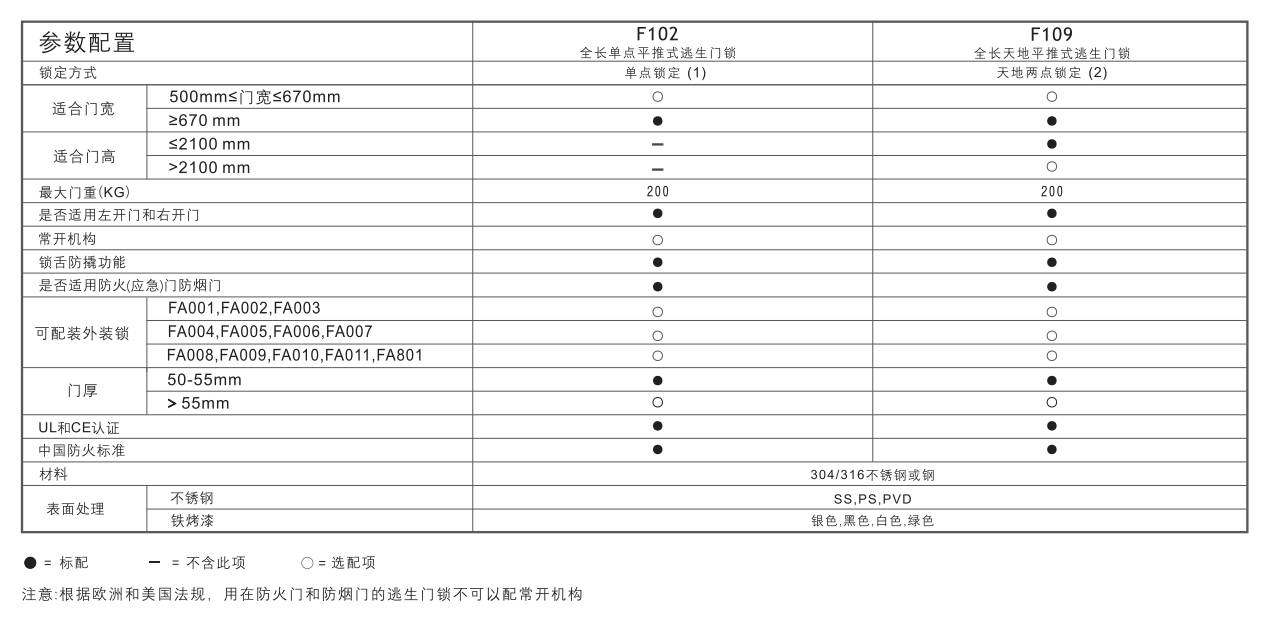

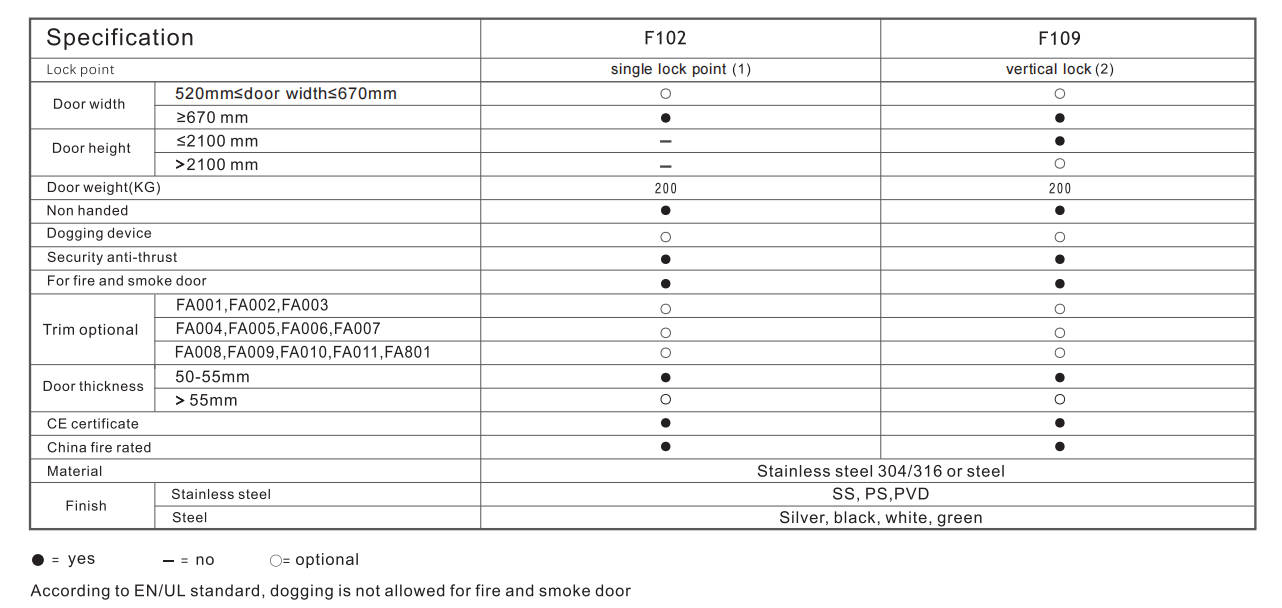

参数配置

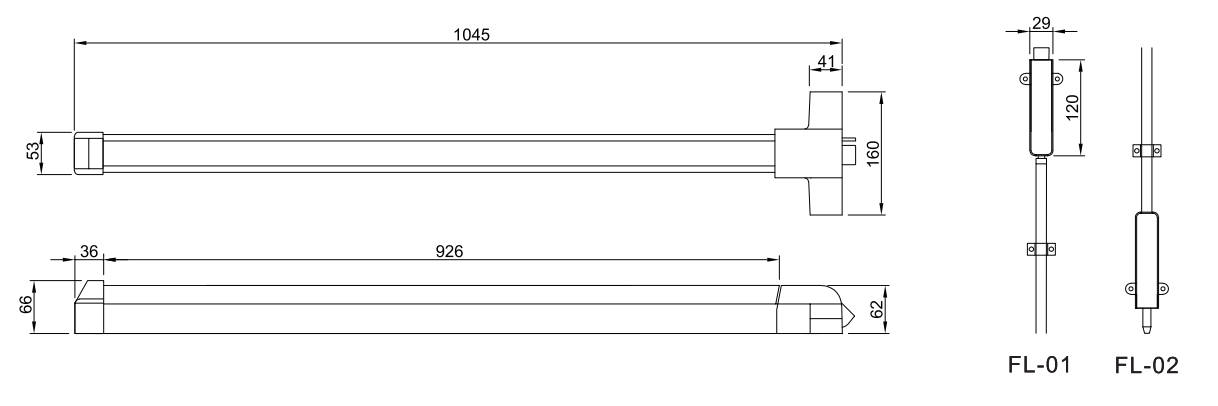

尺寸图
