AD200-LH/RH重型偏心天地轴
产品认证
符合ANSI156.4一级性能标准符合UL3小时防火标准
符合国家GB12955-2008防火90分钟标准产品特性
产品部件全部使用抗腐蚀优质304不锈钢材质精铸不锈钢锻造适用防火及非防火门
精密轴承动作顺滑,并做防尘处理适用超重木门，钢质门等
饰面处理可选:sss、PVD、PS等
产品描述
产品安装不分左右手向

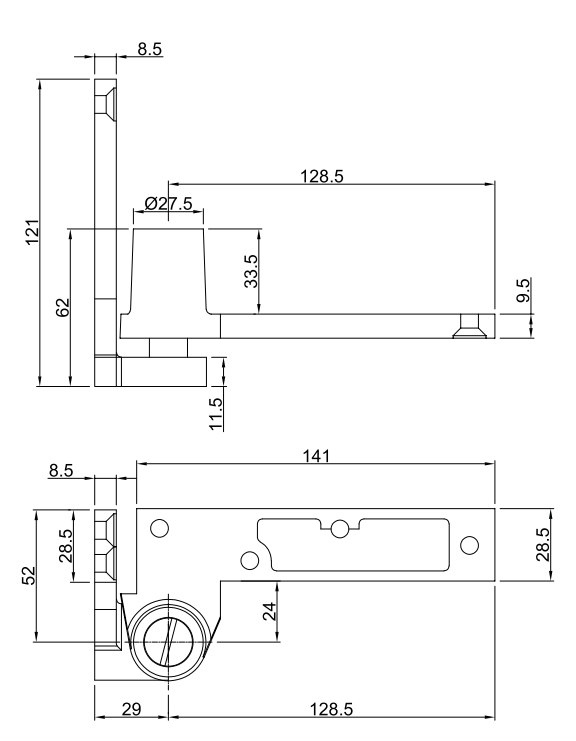

偏心天轴安装于门扇门框顶部偏心地轴安装于门扇底部
适用最小门厚45毫米
最大适用门重550磅(250KG)垂直方向4.5毫米可调

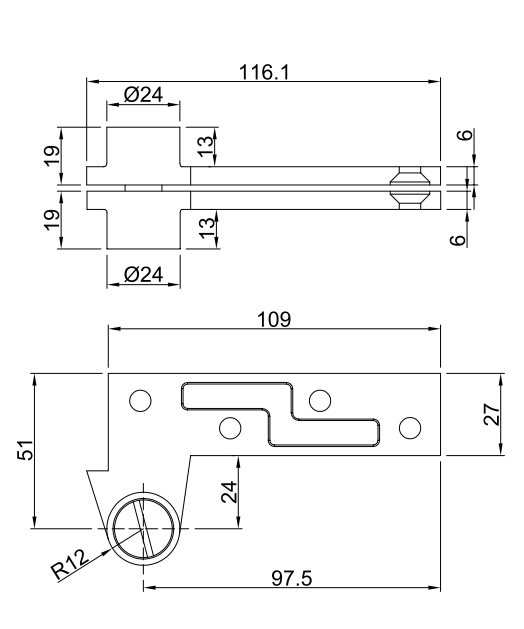

备注:门扇重量超出标准承重45KGS或门高超出2200mm时需配置单个或多个中间轴
Compliance: ANSI 156. 4, Grade 1.
GB 12955-2008, 90 mins fire rated
UL, 3 hours fire rated
Material: stainless steel (SUS 304)
Finish: SSS, PVD, PS
Suitable for wooden doors and steel doors
Precision bearings for smooth operation with dust proof.
Description:
Handed.
Min door thickness: 45mm
Be adjustable for 4.5mm in vertical direction.
Load capacity: 550 Ibs (250KG)
Notes:
When the standard load capacity is more than 45 KG, a
intermediate pivot should be configured!
When the door is taller than 2200 mm , a intermediate pivot
should be configured !
