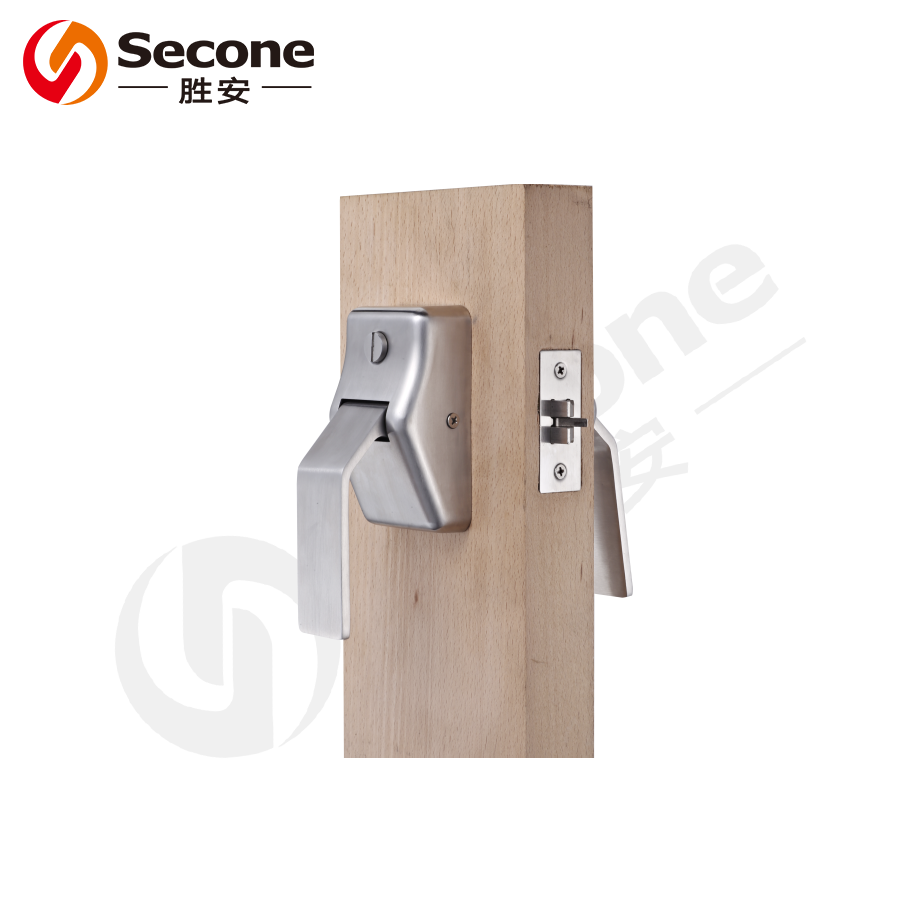

1.LM-870WC系列
1)锁定旋钮在拉手侧
2)应急旋钮在推把侧
2.LM-880WC系列
1)锁定旋钮在推把侧
2)应急旋钮在拉手侧
3.圆形锁栓设计-隐私保护功能
4.旋转锁定旋钮至锁定位置，门锁上锁。
5.将锁定旋钮旋转至解锁位置，或者外侧使用应急旋钮，可解锁门锁
6.适用标准门厚1-3/4
7.符合ADA法规
8.旋钮采用直通螺栓设计，更加安全稳定

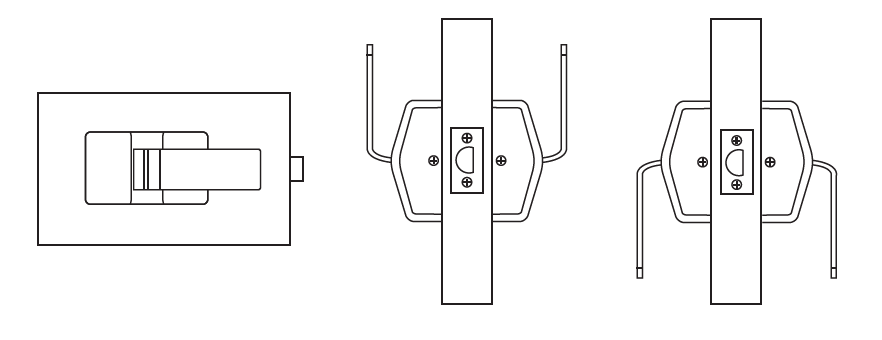

9.安装方式:
1)把手向下
2)把手向上
3)把手朝向锁舌
10.4种可选边距
1)标配2-3/4"
2)3-3/4"
3)5"
4)7"
11.扣片尺寸:
1)标配2-3/4"
2)ASA 4-7/8
1.LM-870WC Series:
1)Locking thumb turn on pull side2)Override knob on push side2.LM-880WC Series:
1)Locking thumb turn on push side
2)Override knob on pull side
3. Cylindricallatch application - privacy function4. Door is locked by moving the thumb turn into the locked position5. Door is unlocked by operating handle on thumbturn side, movingthumb turn into the unlocked position or rotating the override knob incase ofemergency6.1-3/4”standard door thickness7.Meets ADArequirements
8.Trim is mounted using for thru-bolts for maximum stability
9.3 Mounting Positions:
1)Handles down
2)Handles up3)Handles point towardslatch10.4 Backset Sizes:
1)2-3/4"backset standard
2)3-3/4"
3)5"
4)7”
11.Strike Sizes:
1)Standard -2-3/4"
2)ASA-4-7/8"
